Calgary’s growth from a frontier trading post to a metro area of over 1.6 million people has pushed development onto glacio-lacustrine clays, till, and reclaimed floodplains along the Bow and Elbow rivers. Early subdivisions often relied on simple compaction checks, but modern projects demand precision. The Proctor test determines the optimum moisture content and maximum dry density of a soil, providing the baseline for achieving the specified density in the field. For any structural fill, road subgrade, or utility trench in Calgary, this test is non-negotiable. It pairs directly with a granulometria for grading control and with CBR vial when designing pavement layers.
One compaction curve does not fit all soils in Calgary. The Proctor test tailors the moisture-density target to your specific material.
Methodology and scope
A common mistake contractors make in Calgary is assuming that one compaction curve fits all soils. A glacial till behaves nothing like a river sand. The Proctor test solves this by generating a moisture-density curve specific to your material. Standard Proctor (ASTM D698 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)) applies a 5.5 lb hammer dropped 12 inches, simulating light compaction. Modified Proctor (ASTM D1557 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)) uses a 10 lb hammer with an 18-inch drop, matching heavy rollers and high-traffic subgrades. We run both methods depending on the project specification. For deep fills or embankments, we often recommend cross-checking results with a densidad-cono-arena for field verification and a subrasante-vial analysis for long-term settlement.

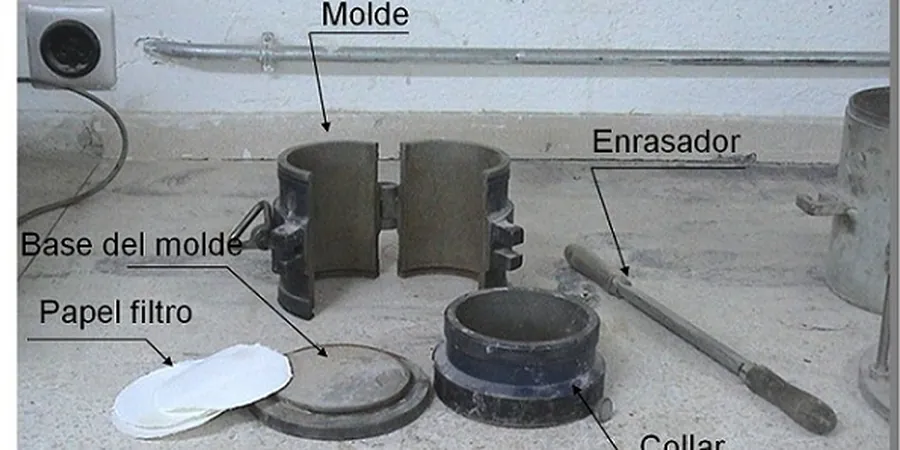

Technical reference image — Calgary
Local considerations
Calgary sits at an elevation of 1,048 meters above sea level, with a semi-arid climate that causes rapid surface drying during summer fills. If the Proctor test is skipped or misapplied, the contractor may place fill at the wrong moisture content. A dry fill won't densify; a wet fill may pump under load. The result is differential settlement, pavement cracking, or utility line breakage. In a city where freeze-thaw cycles reach 120 annually, poorly compacted subgrades become a liability within two winters. We have seen projects where a single missing Proctor curve led to CA$60,000 in rework on a parking lot.
10 lb hammer, 18 in drop, 5 layers, 25 blows/layer
Mold size
4 in or 6 in diameter (based on soil gradation)
Optimum Moisture Content (OMC)
Reported to ±0.5%
Maximum Dry Density (MDD)
Reported in kg/m³ or pcf
Sample mass required
Minimum 25 kg (Standard) / 45 kg (Modified)
Turnaround time
3–5 business days
Accreditation
ISO 17025 (CCRRL compliant)
Associated technical services
01
Material Approval Proctor
Run on borrow source samples before any fill is imported to site. We test both Standard and Modified methods, report OMC and MDD, and provide the compaction curve. Suitable for subgrade, structural backfill, and general earthwork specifications.
02
Field QC Proctor (In-Process)
Re-run the Proctor on material that has been stockpiled or blended on site. Changes in moisture or gradation shift the curve. We compare field moisture content against the lab OMC to adjust compaction effort in real time.
03
Post-Compaction Verification Package
Combines the original Proctor with field density tests (sand cone or nuclear gauge) to calculate percent compaction. Delivered as a certified report for the engineer of record. Often required before paving or foundation pouring.
What is the difference between Standard and Modified Proctor tests?
Standard Proctor (ASTM D698 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)) simulates lighter compaction effort — about 12,400 ft-lb/ft³ — while Modified Proctor (ASTM D1557 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)) applies about 56,000 ft-lb/ft³, matching heavy rollers and high-traffic subgrades. The choice depends on the project specification. Most municipal roadwork in Calgary requires Modified Proctor.
How much does a Proctor test cost in Calgary?
A Standard or Modified Proctor test typically ranges from CA$150 to CA$290 per sample, depending on the number of points on the curve and whether sieve analysis is included. Volume discounts apply for multiple samples from the same source.
How much soil sample is needed for the test?
You need about 25 kg for a Standard Proctor and 45 kg for a Modified Proctor. The sample should be representative of the material being placed. We can collect it on site or you can deliver it to our Calgary lab.
Can the Proctor curve change for the same material?
Yes. If the gradation changes — due to crushing during hauling, blending with other soils, or moisture loss during storage — the OMC and MDD shift. That is why we recommend re-running the Proctor every time a new borrow source is opened or when the material visibly changes.
