Calgary's freeze-thaw cycles and thick deposits of glacial till over compressible lacustrine clays create a unique challenge for ground improvement. Preloading with surcharge design accelerates primary consolidation before construction, reducing post-construction settlement in commercial and residential developments across the city. The technique relies on staged load application, monitored via settlement plates and piezometers, to confirm when the target degree of consolidation is reached. For projects near the Bow River or Elbow River, where soft alluvial soils are common, combining preloading with vertical drains can cut consolidation time by months. The approach is especially effective in Calgary's developing communities like Seton and Walden, where deep clay layers are prevalent.
A well-designed preloading program can reduce post-construction settlement by 70–90% compared to untreated ground, saving millions in future repairs.
Methodology and scope
Calgary sits at roughly 1,048 meters above sea level, with a semi-arid climate that produces significant soil moisture variation through the year. Preloading with surcharge design must account for this seasonal effect on pore pressure dissipation rates. The design process typically includes:
Determining the required surcharge height (often 3–6 m of fill) based on the target stress increase and soil compressibility parameters from oedometer tests
Monitoring settlement rate to confirm when 90% of primary consolidation is achieved under the surcharge load
Integrating with settlement analysis to predict total and differential movements for adjacent infrastructure
Field verification using plate load tests after surcharge removal confirms the achieved bearing capacity. The entire sequence is governed by NBCC 2020 for serviceability limits and CSA + CSA + CSA + CSA + ASTM D2435 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) for consolidation testing. Calgary's geotechnical community has refined these methods over decades of work on the city's soft soils.

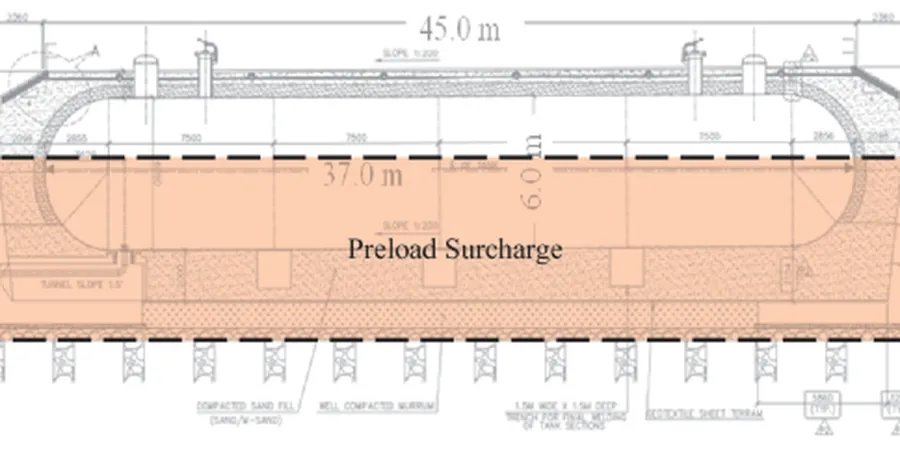

Technical reference image — Calgary
Local considerations
Calgary's rapid suburban expansion since the 1970s pushed development onto former wetlands and river terraces underlain by compressible silts and organic soils. Without proper preloading with surcharge design, these areas suffer from differential settlement, cracked foundations, and utility line failures within the first decade. The 2013 Bow River flood also highlighted how fluctuating groundwater levels can alter consolidation rates unpredictably. Ignoring the seasonal moisture cycle — where Calgary's dry summers lower the water table only to rise again in spring — risks premature surcharge removal and long-term damage. A thorough site investigation using MASW surveys combined with borehole data helps map the depth and thickness of compressible layers before design begins.
Boreholes, undisturbed sampling, and oedometer tests to characterize compressibility, preconsolidation pressure, and coefficient of consolidation for each soil layer.
02
Surcharge Design & Staging
Determination of surcharge height, load staging schedule, and required duration based on target settlement and degree of consolidation.
03
Instrumentation & Monitoring
Installation of settlement plates, vibrating wire piezometers, and inclinometers with real-time data transmission to track performance and confirm when surcharge can be removed.
How long does a typical preloading program take in Calgary?
Duration depends on soil permeability and surcharge height. For Calgary's glacial till with moderate permeability, 6 to 12 months is common. Where vertical drains are installed, the time can drop to 3–6 months.
What is the difference between preloading and surcharging?
Preloading applies a temporary load equal to or greater than the design load to accelerate consolidation. Surcharging specifically means applying an extra load beyond the final design load to pre-compress the soil and reduce long-term settlement. The two terms are often used together.
What is the typical cost range for a preloading design in Calgary?
Design and monitoring fees for a medium-sized site (2–5 hectares) typically range from CA$1,030 to CA$3,940, depending on complexity, number of boreholes, and monitoring duration. Full installation and fill costs are additional and site-specific.
Can preloading be used on organic soils or peat in Calgary?
Yes, but it requires careful design because organic soils have high compressibility and slow consolidation. Preloading with surcharge combined with vertical drains and staged loading is effective for peat deposits found in Calgary's western suburbs, though longer monitoring periods (12–24 months) may be needed.
