Calgary sits at 1,048 meters above sea level, with a semi-arid climate that means soils here are often dry. That dryness directly affects how we run a field density test (sand cone method). The sand cone method measures in-place density of compacted soil. It works by excavating a small hole, filling it with calibrated sand, and then weighing the material. Calgary's freeze-thaw cycles and expansive clay pockets make this test essential for verifying compaction. We see it used constantly on residential basements, commercial slabs, and roadway subgrades. Before placing structural fill, many engineers combine this with a Proctor test to establish the target dry density. The sand cone remains the standard for acceptance on most municipal projects here.
Calgary's dry climate and glacial till demand careful sand cone calibration to avoid false compaction readings.
Methodology and scope
In Calgary we often find that the natural till and glacial deposits compact well but can hide thin lenses of silt. The field density test (sand cone method) catches those variations. Our team follows a strict protocol: calibrate the sand density, level the surface, dig a clean cylindrical hole, and collect every grain. We weigh the wet soil, dry it in the oven, and calculate dry density. It sounds simple but the details matter. For example, the sand cone apparatus must be kept vibration-free during the test. We also cross-check results against the compaction curve. For deep fills or when access is tight, we sometimes pair this test with a CPT to profile the underlying layers. The sand cone method is the most direct way to confirm that the contractor met the specified compaction.

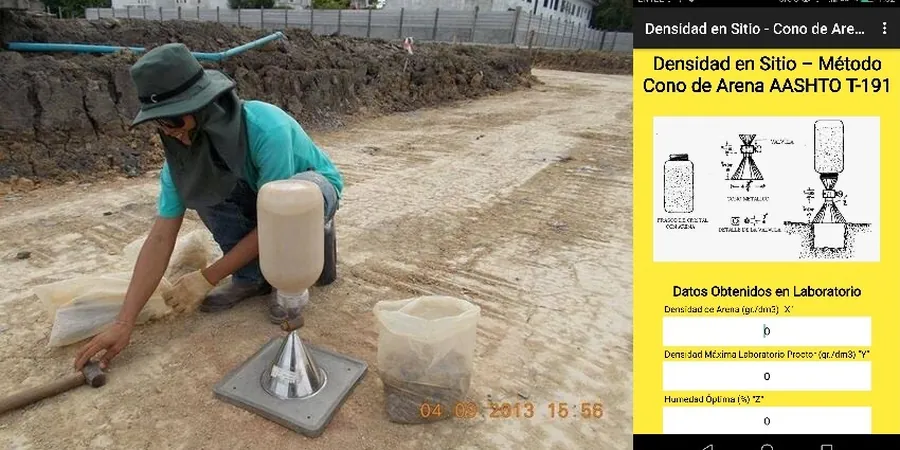

Technical reference image — Calgary
Local considerations
NBCC and the City of Calgary's Land Use Bylaw require compaction verification for structural fills. Without a valid field density test (sand cone method), the foundation classification may be downgraded. In Calgary's swelling clay zones, under-compacted fill can cause differential settlement of up to 50 mm. The sand cone method directly measures the air voids ratio. If compaction falls below 95% of standard Proctor, the risk of soil collapse under load increases. Our technicians check the test location for surface irregularities that could trap air beneath the base plate. That single detail can skew results by 5% or more.
For pavement subgrades and building pads. We run the test every 500 m² or as specified in the geotechnical report. Results include dry density, moisture content, and percent compaction.
02
Sand Cone for Trench Backfill
Utility trenches in Calgary often use granular backfill. The sand cone method verifies compaction in lifts. We test at multiple depths to ensure uniform density.
03
Sand Cone for Embankment Fills
Large highway or rail embankments require frequent density checks. Our team deploys multiple sand cone sets to keep up with production. We report within 24 hours.
Applicable standards
ASTM D1556, AASHTO T-191, NBCC 2020 Table 4.1.8.4
Frequently asked questions
How much does a field density test (sand cone method) cost in Calgary?
The typical range for a field density test (sand cone method) in Calgary is CA$150 to CA$210 per test. Volume discounts apply for projects needing 10 or more tests. Prices vary with travel distance and whether you need same-day results.
What is the difference between sand cone and nuclear gauge?
The sand cone method directly measures in-place density by physical excavation. It is the reference method for ASTM. Nuclear gauges are faster but require calibration and licensing. For clayey soils common in Calgary, the sand cone often gives more reliable results on the first pass.
Can I use the sand cone method on gravelly soils?
It works best on fine to medium-grained soils. For gravel or cobbles, the test hole may collapse. In those cases we recommend the rubber balloon method or a nuclear gauge. Calgary's glacial till contains some gravel, but the sand cone still performs well if you choose a hole diameter 1.5 times the maximum particle size.
How many field density tests do I need for a residential basement?
City of Calgary standards typically require one sand cone test per 200 m² of floor area, with a minimum of two tests per backfill zone. The geotechnical engineer of record will specify the frequency. We often see 3 to 5 tests for a standard 2,000 ft² basement.
