Calgary sits at an elevation of roughly 1,045 meters, exposing its soils to deep frost cycles and rapid spring thaws. The predominant glacial till here contains cobbles and boulders, while the underlying bedrock is often fractured sandstone or shale. Geocell design in Calgary must account for these conditions—the three-dimensional confinement system works best when the infill material and cell geometry are matched to the site's specific gradation. Before we finalize any reinforcement layout, we always correlate the design with results from a subgrade evaluation to confirm the bearing capacity under the proposed traffic or structural loads.
Confinement from geocells transforms loose granular fill into a stiffened slab, reducing base thickness by 30-50% on Calgary's glacial till subgrades.
Methodology and scope
The seasonal moisture swings in Calgary—from dry prairie winds to heavy snowmelt—create volumetric changes in the clay-rich till that can destabilize unreinforced fills. Geocell design here uses a simple principle: confinement increases the apparent cohesion of granular infill, allowing steeper slopes and thinner base courses. We typically specify cell heights between 100 and 200 mm for road applications, with seam strength verified to ASTM D4886. For heavy haul roads or temporary access tracks, we combine geocell design with deep soil mixing when the subgrade is too soft to even place the first lift. The result is a composite layer that distributes loads laterally and reduces rutting by up to 50% compared to unreinforced sections.

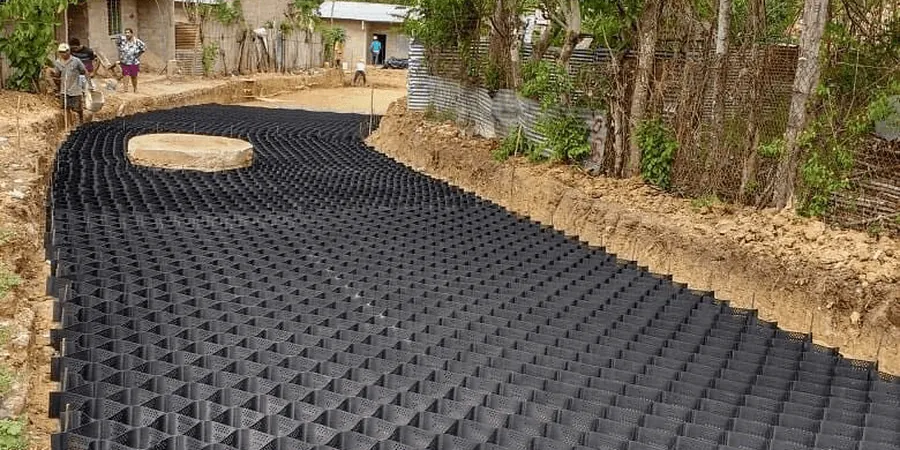

Technical reference image — Calgary
Local considerations
The biggest risk we see on Calgary sites is differential settlement at the transition between cut and fill sections. If the geocell mattress is not properly keyed into the natural slope or if the drainage layer beneath it is omitted, water can saturate the subgrade and cause the entire reinforced zone to float or shear. We use a geocomposite drainage strip along the base of every geocell panel in Calgary to prevent this. Without proper detailing, the confinement benefit disappears and the pavement or slope reverts to unreinforced behavior within two freeze-thaw cycles.
Analysis of traffic and static loads to determine geocell infill thickness, cell geometry, and required seam strength for access roads, laydown yards, and temporary platforms.
02
Slope Stabilization Layout
Design of geocell-reinforced soil slopes up to 1H:1V, including anchor trench details, drainage layer specification, and facing erosion protection for Calgary's steep ravines.
03
Basal Reinforcement for Embankments
Geocell mattress design over soft compressible layers, with settlement and stability checks to allow staged construction on Calgary's alluvial or lacustrine deposits.
04
Retaining Wall Facade Systems
Vegetated geocell walls for grade changes up to 4 m, with internal drainage and connection details to resist hydrostatic pressure from Calgary's spring runoff.
How does geocell design differ from geogrid reinforcement in Calgary?
Geogrids work by tension—they require a certain strain to mobilize their reinforcement. Geocells provide immediate confinement in three dimensions, so they are better suited for very soft subgrades or where you need instant access after compaction. In Calgary's till, geocells also handle cobbles better than geogrids because the cells prevent lateral displacement of the coarse particles.
What infill material is recommended for geocell design in Calgary?
Clean crushed gravel with a D50 between 10 and 30 mm works best. It locks into the cell walls and drains freely. Avoid using silty sand or clay—those materials can hold water and freeze within the cells, destroying the confinement effect during thaw cycles.
How much does geocell design cost for a typical Calgary project?
For a basic access road design, the engineering and material specification ranges between CA$970 and CA$3,400 depending on the length and complexity. Full design-build packages with installation support fall in the higher end of that range. Volume discounts apply for multi-hectare sites.
Can geocell design be used for permanent retaining walls in Calgary?
Yes, but the wall must be designed with a drainage system behind the geocell face to handle spring runoff. We typically specify a 300 mm granular backfill zone with a perforated collector pipe at the base. Geocell walls up to 4 m high are common here for noise barriers and grade separations along Deerfoot Trail.
