A common oversight among contractors in Calgary is assuming a uniform soil profile across a site, then designing cuts without verifying shear strength parameters. The result is a slope that appears stable during dry summer months but fails under spring thaw or after a heavy rainfall event. A proper slope stability analysis accounts for transient groundwater conditions, especially in the glacio-lacustrine clays and till sequences that underlie much of the city. Without it, the factor of safety is essentially unknown. The analysis integrates Mohr-Coulomb strength data from triaxial testing and in-situ moisture monitoring to produce a defensible stability model before any excavation permit is filed.
A slope with a calculated factor of safety above 1.5 may still fail if transient pore pressures from snowmelt are ignored in the analysis.
Methodology and scope
The contrast between the Bow River valley and the upland plains east of Deerfoot Trail illustrates why one-size-fits-all slope designs fail in Calgary. In the valley, interbedded sands and gravels overlie a high-permeability aquifer that saturates the lower slope face; here the analysis must incorporate seepage forces and the potential for piping. On the plains, thick clay crusts from glacial Lake Calgary dominate, and stability is governed by undrained strength and tension cracks. Before running limit equilibrium models, it is standard practice to correlate borehole logs with a densidad cono arena field check to verify compaction of existing fills. For cuts that intersect perched water tables, the model also draws on permeabilidad campo data to calibrate pore pressure dissipation rates during and after excavation.

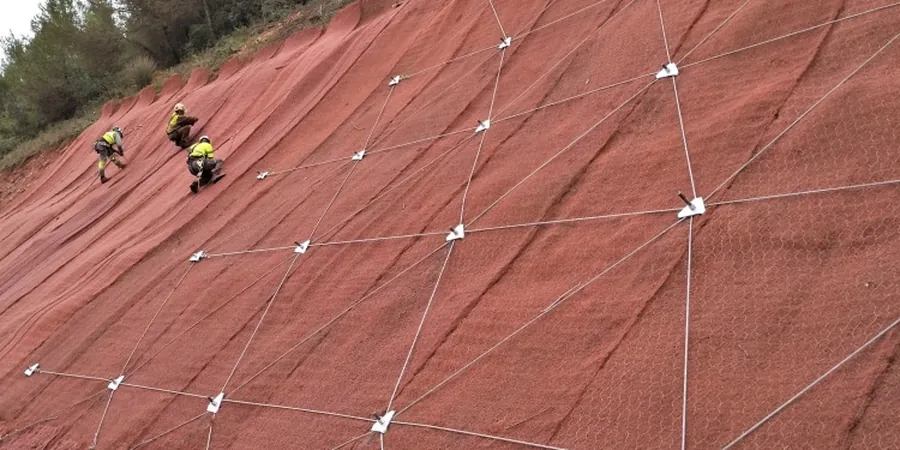

Technical reference image — Calgary
Local considerations
NBCC 2020 Division B, Section 4.2.4 requires that all cuts exceeding 3 m in height be designed with a documented stability analysis that accounts for both short-term undrained and long-term drained conditions. In Calgary, the risk is amplified by the presence of glaciolacustrine clay crusts that lose strength rapidly upon exposure to freeze-thaw cycles. The record 2013 flood in the Bow Basin demonstrated how underestimated groundwater recharge can trigger retrogressive failures in seemingly competent slopes. A limit equilibrium method using Spencer’s or Morgenstern-Price formulation is the minimum standard; for complex stratigraphy we apply finite element stress-strain models to capture progressive failure mechanisms.
Bishop Simplified, Spencer, and Morgenstern-Price methods applied to circular and non-circular slip surfaces. Used for routine cut slopes, highway embankments, and temporary excavation support. Output includes factor of safety, critical slip surface location, and sensitivity to shear strength variation.
02
Finite Element / Finite Difference Modeling (FEM)
Two-dimensional and three-dimensional stress-strain analysis using Plaxis and FLAC. Coupled consolidation and seepage modeling for slopes in the Bow River valley where groundwater fluctuations are significant. Suitable for progressive failure assessment and parametric studies of reinforcement.
03
Probabilistic Stability Assessment
Monte Carlo simulation over input parameters (cohesion, friction angle, pore pressure) to quantify the probability of failure. Essential for high-consequence slopes adjacent to infrastructure or residential subdivisions where a single deterministic factor of safety may be misleading.
Applicable standards
NBCC 2020 – Section 4.2.4 for foundation and excavation stability, ASTM D3080/D3080M – Direct shear test for effective stress parameters, FHWA-NHI-14-007 – Geotechnical engineering circular for slope stability
Frequently asked questions
What is the minimum factor of safety required for a permanent cut slope in Calgary?
NBCC 2020 and the City of Calgary’s geotechnical guidelines typically require a factor of safety of at least 1.5 for static conditions and 1.1 for pseudo-static seismic loading. Temporary cuts may be accepted at 1.3 if monitoring instrumentation is installed.
Which soil types in Calgary are most problematic for slope stability?
Glaciolacustrine clay crusts and varved clays are the most problematic due to their high plasticity and sensitivity to strength loss upon remolding. The silt layers within the varves also create horizontal drainage paths that can lead to rapid pore pressure increases during snowmelt.
How much does a slope stability analysis cost for a residential lot in Calgary?
A standard limit equilibrium study with one borehole and laboratory triaxial testing typically ranges from CA$1.780 to CA$3.200. A more comprehensive FEM analysis with multiple sections and probabilistic assessment can go up to CA$5.580, depending on site complexity and the number of scenarios evaluated.
Do I need a slope stability analysis for a cut less than 3 m deep?
While NBCC 2020 only mandates analysis above 3 m, the City of Calgary’s drainage bylaw and many subdivision approvals require a stability check for any cut that could affect adjacent property drainage or surcharge loading. Shallow cuts in clay crusts can still experience progressive failure over several freeze-thaw cycles.
