Calgary sits on a mix of glacial till, lacustrine deposits, and alluvial fans from the Bow and Elbow Rivers. The region's semi-arid climate, with annual precipitation around 412 mm, creates conditions where loose, low-density soils can suddenly collapse when wetted. Collapsible soil evaluation is essential here to identify these metastable layers before construction. Our lab follows ASTM D5333 (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4) to measure collapse potential under controlled loading and inundation. We combine field sampling with laboratory oedometer tests to quantify settlement risk. For deeper profiles, we integrate ensayo CPT to map thin collapse-prone zones continuously, and georradar GPR to detect voids or loose pockets that could trigger differential movement.
Collapsible soil evaluation in Calgary must account for the metastable structure of loess-like deposits, where collapse indices above 5 percent demand immediate mitigation.
Methodology and scope
A warehouse expansion in southeast Calgary recently faced collapse settlement after an underground pipe leak. Our team was called to evaluate the existing subgrade. The testing protocol starts with undisturbed block samples taken from test pits or thin-walled Shelby tubes. In the lab, we run double-oedometer tests — one at natural moisture, one inundated — to calculate collapse index. Specimens are loaded incrementally up to 200 kPa or more, simulating foundation pressures. Key parameters include collapse potential (Cp) and coefficient of collapsibility. We also classify the soil using Atterberg limits and grain-size distribution. Before sampling, we recommend calicatas exploratorias to visually inspect soil fabric and identify root holes or desiccation cracks that accelerate collapse. When collapse potential exceeds 2%, mitigation is typically required — pre-wetting, dynamic compaction, or deep foundations. Our reports include specific recommendations tied to NBCC 2020 hydrogeological zones for Calgary.

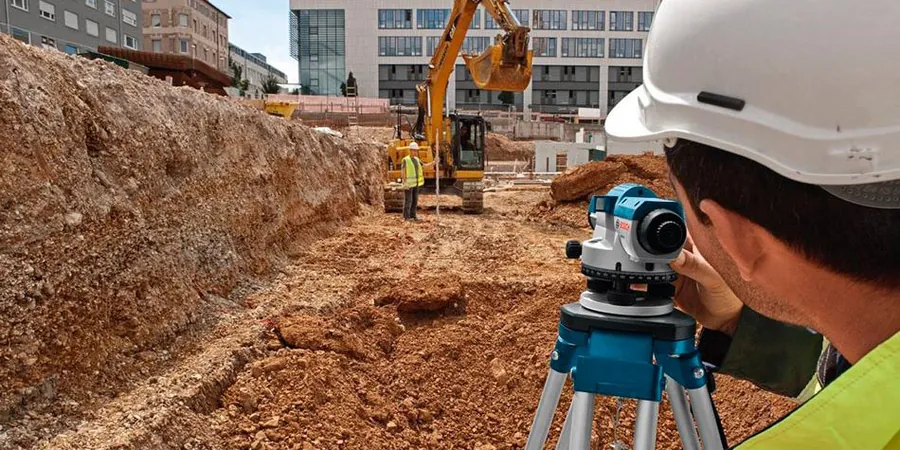

Technical reference image — Calgary
Local considerations
Calgary's freeze-thaw cycles and episodic heavy rains from chinook winds create a unique hazard for collapsible soils. A dry summer followed by a sudden downpour can trigger rapid settlement beneath lightly loaded structures. The risk is highest in the city's newer subdivisions on the eastern plains, where wind-deposited silt (loess) is common. Ignoring collapsible soil evaluation can lead to cracked foundations, misaligned slabs, and costly litigation. We always check for perched water tables and buried utility leaks during fieldwork. Combining suelos expansivos testing with collapse evaluation is critical in Calgary, as both mechanisms often coexist in clay-rich till zones.
We use thin-walled Shelby tubes and hand-carved block samples from test pits to preserve the in-situ fabric and moisture content. Samples are sealed and transported in temperature-controlled containers to maintain integrity for collapse testing.
02
Double-Oedometer Collapse Test
Two identical specimens are loaded simultaneously — one at natural moisture, one inundated — to measure collapse potential under wetted conditions. Results are reported as collapse index and strain at each load increment.
03
Mitigation Recommendations & Monitoring
Based on test results, we recommend pre-wetting, dynamic compaction, or deep foundations. We also install settlement plates and inclinometers to verify performance post-construction.
What is collapsible soil and why does it matter in Calgary?
Collapsible soil is a loose, low-density soil that suddenly settles when wetted or loaded. In Calgary, wind-deposited silts and lacustrine sands are prone to collapse, especially after dry summers followed by heavy rain. Evaluation is required under NBCC 2020 to prevent differential foundation settlement.
How much does collapsible soil evaluation cost in Calgary?
A standard evaluation for a single test pit with double-oedometer testing ranges from CA$1,020 to CA$2,920. Final cost depends on site access, number of samples, and whether additional tests like CPT or GPR are needed.
What is the difference between collapse potential and collapse index?
Collapse potential (Cp) is the total vertical strain under a given load when the sample is inundated, expressed as a percentage. Collapse index (Ie) is a normalized parameter used to classify collapsibility into categories (none, moderate, severe). Both are derived from the double-oedometer test per ASTM D5333 (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4).
Can collapsible soil be improved without deep foundations?
Yes. Pre-wetting the soil to collapse it before construction, dynamic compaction, or surcharge loading can densify the layer. For moderate collapse potential, shallow foundations with reinforced slabs on grade are often sufficient, provided the collapse zone is less than 2 m deep.
