Atterberg Limits Testing in Calgary – Avoid Costative Soil Classification Mistakes

Together, we solve the challenges of tomorrow.

LEARN MORE →

Many construction teams in Calgary assume a simple visual inspection is enough to classify soil. That assumption often leads to costly rework. Clay-rich till and lacustrine deposits across the city can shift from stiff to plastic with just a small moisture change. Without Atterberg limits, you miss the liquid limit, plastic limit, and plasticity index that control how the soil behaves under load. We see projects where a wrong plasticity estimate caused slab heave or settlement cracks within the first year. Running these tests early eliminates that guesswork. Before placing a foundation, pair this data with a study of expansive soils to understand the full shrink-swell potential of the glacial till common in Calgary.

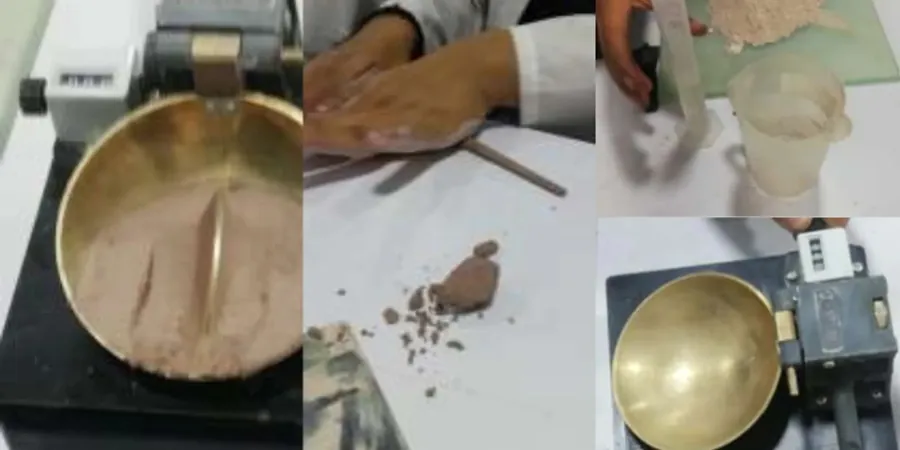

Illustrative image of Limites atterberg in Calgary
A plasticity index above 30 in Calgary's glacial till means moderate expansion risk. Moisture control strategy changes at that threshold.

Methodology and scope

A 10-story residential tower in the Beltline district recently required Atterberg limits to evaluate the clay till beneath its mat foundation. The plasticity index came back above 30, which flagged a moderate expansion risk. That single number changed the moisture control strategy for the entire site. Our lab follows CSA A23.2-2A to determine liquid limit using the Casagrande cup method and plastic limit by rolling threads until they crumble. We also measure the shrinkage limit when needed. These three values define the soil consistency and its reaction to seasonal wet-dry cycles. For road projects crossing the Bow River floodplain, we combine Atterberg limits with CBR testing for pavement design to ensure the subgrade won't soften during spring thaw.
Technical reference image — Calgary

Local considerations

A Casagrande cup sits on a lab bench calibrated to drop exactly 10 mm per blow. The technician runs the liquid limit test until the groove closes over 25 mm. If that number is off by even one blow count, the plasticity index shifts. In Calgary, where the frost line reaches 1.5 m and spring thaw saturates the upper clay layers, an inaccurate Atterberg limit can lead to underestimating heave pressure. That means cracked basement walls or uneven parking lots. We also see risk when contractors skip the plastic limit test. Without it, you cannot compute the plasticity index, and you lose the ability to classify the soil according to the Unified Soil Classification System (USCS). That missing data compromises the entire geotechnical report.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering.xyz

Technical parameters

ParameterTypical value
Liquid Limit (LL)30% – 55% (typical for Calgary till)
Plastic Limit (PL)15% – 25%
Plasticity Index (PI)10% – 35%
Shrinkage Limit (SL)12% – 18%
StandardCSA A23.2-2A
Sample Mass Required200 g – 500 g (passing No. 40 sieve)

Associated technical services

01

Standard Atterberg Limits (LL & PL)

Liquid limit by Casagrande cup and plastic limit by thread rolling. Includes plasticity index calculation. Suitable for all fine-grained soils.

02

Shrinkage Limit Test

Measures the moisture content at which no further volume reduction occurs. Critical for expansive clay assessment in Calgary's residential areas.

03

Combined Atterberg & USCS Classification

Full Atterberg limits plus grain size analysis to assign the Unified Soil Classification System group symbol. Ideal for geotechnical reports requiring complete soil characterization.

Applicable standards

CSA A23.2-2A – Standard Test Methods for Liquid Limit, Plastic Limit, and Plasticity Index of Soils, NBCC 2020 – National Building Code of Canada (clause 4.2.4 for foundation design in expansive soils), CSA A23.3-19 – Concrete design provisions referencing soil shrinkage potential

Frequently asked questions

Why are Atterberg limits important for construction in Calgary?

Calgary's glacial till and lacustrine clay have high plasticity variation. Atterberg limits tell you how much the soil will swell when wet and shrink when dry. Without that data, foundations can heave or settle unevenly within one freeze-thaw cycle.

What is the typical cost for Atterberg limits testing in Calgary?

The price for a standard liquid limit and plastic limit test ranges between CA$100 and CA$130 per sample. The shrinkage limit test adds approximately CA$40 to CA$60. Volume discounts apply for project suites with 10 or more samples.

How long does it take to get Atterberg limits results?

Standard turnaround is 3 to 5 business days from sample receipt. Rush service (24 hours) is available for an additional charge. We coordinate with your project schedule to avoid delays in foundation design.

Location and service area

We serve projects across Calgary.
