Calgary sits on a thick sequence of glacial till and clay-rich soils that can shift dramatically with moisture changes. The water table often sits 2 to 5 meters below grade, but seasonal fluctuations and the presence of perched water layers complicate foundation design. A raft or mat foundation spreads structural loads across a wider footprint, reducing differential settlement in these variable soils. Before finalizing the slab geometry, we recommend combining a thorough soil classification with a geotechnical CPT sounding to map stratigraphy at close intervals, and a consolidation test to predict long-term settlement under sustained loads. This integrated approach ensures the mat thickness and reinforcement match Calgary's actual subsurface conditions.
Raft foundations in Calgary's glacial till can limit differential settlement to under 15 mm when proper consolidation tests and preload programs are applied before casting.
Methodology and scope
A typical 6-story residential tower in the Beltline district sits on a 1.2-meter-thick mat foundation designed to handle bearing pressures near 200 kPa. The design process starts with a detailed site investigation that includes test pits and laboratory testing on undisturbed samples. We then model the raft using finite element software that accounts for soil-stiffness interaction and the effect of adjacent excavations. For sites with soft clay layers near the Bow River valley, we often incorporate a preload program to accelerate primary consolidation before casting the mat. The slab itself is reinforced with two layers of steel and a perimeter grade beam to resist frost heave forces, which in Calgary can reach 1.8 meters of frost penetration. A drainage geotechnical system around the perimeter helps maintain stable moisture content beneath the slab year-round. Every design is peer-reviewed against NBCC 2020 and CSA A23.3 requirements to verify serviceability and ultimate limit states.

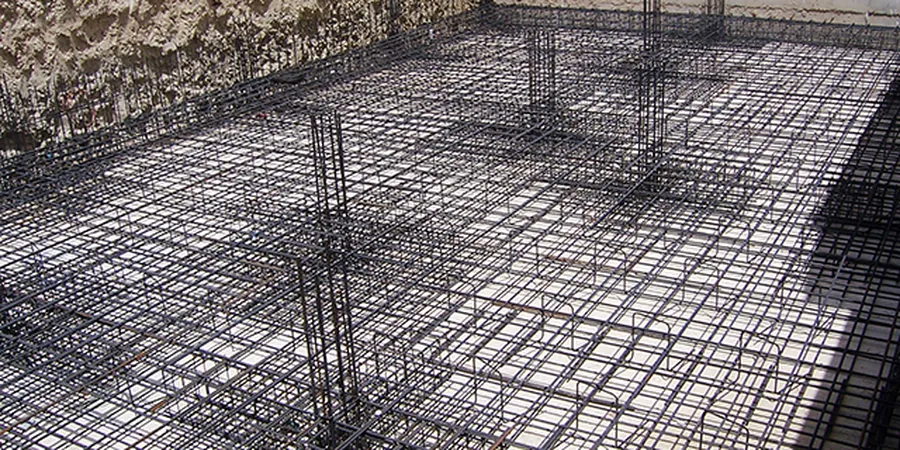

Technical reference image — Calgary
Local considerations
NBCC 2020 requires that all foundations in Calgary be designed for a seismic hazard with a 2% probability of exceedance in 50 years. Although the city is in a moderate seismic zone, the combination of thick clay till and high water table can amplify ground motion. The primary risk for mat foundations in Calgary is differential settlement caused by swelling clay layers or uneven consolidation beneath the slab. A poorly designed mat on untreated soft clay can experience edge-lift due to frost or moisture changes, leading to cracking in superstructure walls. We mitigate this by specifying a drainage blanket, a capillary break, and a properly compacted granular base course that isolates the mat from the underlying till. Each design includes a settlement analysis using the method of Schmertmann (1978) calibrated to local soil data.
Boreholes, SPT, undisturbed sampling, and laboratory testing (Atterberg limits, triaxial, consolidation) to determine soil stratigraphy, strength, and compressibility specific to the site.
02
Mat Foundation Structural Design & Detailing
Finite element modeling of the raft under combined gravity, wind, and seismic loads, including reinforcement layout, crack control, and construction joint details per CSA A23.3.
03
Settlement & Heave Analysis
Time-dependent settlement predictions using consolidation theory, plus frost heave and swelling potential assessment, with recommendations for preload, drainage, and insulation.
Applicable standards
NBCC 2020 – National Building Code of Canada, Section 4.2 (Foundations), CSA A23.3-19 – Design of Concrete Structures for Buildings, CSA A23.2-9A / CSA A23.2-9A / CSA A23.2-9A / CSA A23.2-9A / CSA A23.2-9A / ASTM D1586 – Standard Test Method for Standard Penetration Test (SPT), CSA + CSA + CSA + CSA + ASTM D2435 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) – Standard Test Method for One-Dimensional Consolidation Properties of Soils
Frequently asked questions
What is the typical cost range for a raft foundation design in Calgary?
For a standard low-rise to mid-rise project, the design and geotechnical investigation costs range from CA$1.440 to CA$6.310, depending on site complexity, number of boreholes, and required load testing.
How deep should a mat foundation be in Calgary's frost zone?
The bottom of the mat should be placed at least 1.8 meters below finished grade, or the slab must be protected with rigid insulation and a granular capillary break to prevent frost heave from reaching the underside.
Can a raft foundation be used on soft clay or peat in Calgary?
Yes, but only after improving the subgrade through preloading, stone columns, or deep soil mixing. Without improvement, the mat would settle excessively and could crack. Our design always includes a settlement analysis for such soils.
What soil parameters are most critical for mat foundation design?
The modulus of subgrade reaction, undrained shear strength, and consolidation characteristics (Cc, Cv) are the three most important parameters. We determine these from SPT, triaxial, and consolidation tests performed on undisturbed samples.
