Calgary’s growth has pushed development into former glacial plains and river terraces. The city sits on a mix of glacial till, alluvial sands, and lacustrine clays left by glacial Lake Calgary. This diverse geology directly impacts pavement performance. A thin subgrade layer on a clay pocket can settle differently than a section on dense till. That is why road geotechnics must start with a site-specific investigation. We combine test pits, boreholes, and in-situ density tests to map soil variability. Before placing any base material, we run CBR tests to measure the subgrade’s bearing capacity. That data drives the pavement thickness design. For industrial access roads in the southeast industrial corridor, we also check groundwater depth. High water tables soften the subgrade and require drainage or stabilization. Proper road geotechnics prevents premature cracking and reduces long-term maintenance costs.
In Mahogany, we often specify lime or cement stabilization to reach a CBR above 5. In Inglewood, the native till might already achieve a CBR of 8 to 10.
Methodology and scope
Compare a residential street in the inner-city community of Inglewood with a collector road in the new development of Mahogany. Inglewood sits on older glacial till with moderate clay content. Mahogany, built on reclaimed lakebed sediments, has softer lacustrine clays that require deeper excavation. The difference in subgrade strength is dramatic. In Mahogany, we often specify lime or cement stabilization to reach a CBR above 5. In Inglewood, the native till might already achieve a CBR of 8 to 10. For each project we perform Atterberg limits tests to classify the soil’s plasticity. High-plasticity clays swell when wet and shrink when dry, damaging pavements. We also run Modified Proctor tests to determine the optimum moisture content for compaction. The compaction target changes with the soil type. Our road geotechnics approach tailors the design to the exact soil conditions found on site.

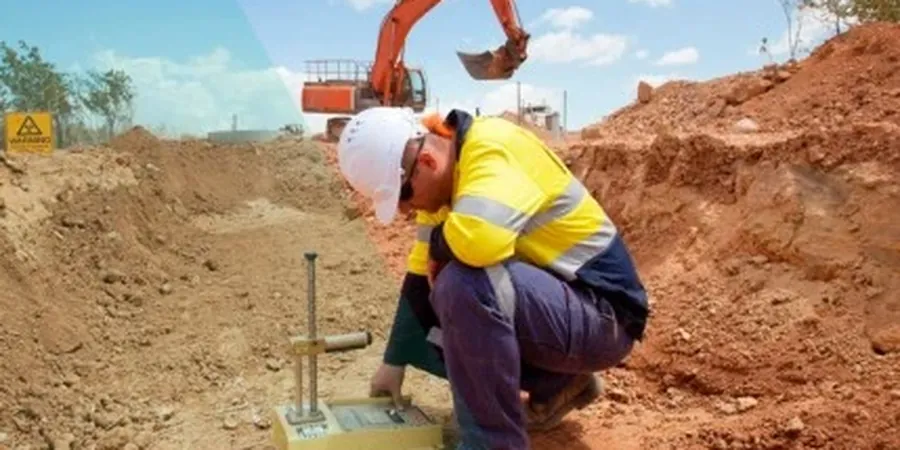

Technical reference image — Calgary
Local considerations
Calgary sits at an elevation of 1,048 meters above sea level, in a region with a freeze-thaw cycle that can exceed 150 cycles per year. Frost heave is a real risk. When fine-grained subgrade soils freeze, ice lenses form and lift the pavement. Spring thaw then saturates the subgrade, turning it into a mud layer that loses all bearing capacity. This seasonal softening causes potholes and alligator cracking. Road geotechnics must account for the frost penetration depth, typically around 1.5 meters in Calgary. We design granular base layers to drain water away and keep frost away from the subgrade. If the subgrade is frost-susceptible clay, we recommend replacing it with non-frost-susceptible fill or installing capillary breaks. Ignoring frost action leads to pavement failure within two winters.
We perform test pits, boreholes, and in-situ density tests to classify the subgrade soil. Our lab runs CBR, Atterberg limits, and Proctor compaction tests. Based on results we design lime, cement, or geotextile stabilization to meet the required bearing capacity for the pavement structure.
02
Pavement Thickness and Material Selection
Using the subgrade CBR and traffic load projections, we calculate the required thickness of granular base, asphalt, or concrete layers. We also specify the granular material gradation and drainage requirements. Our reports include a flexible or rigid pavement design following AASHTO 1993 or MEPDG methods.
What is the difference between CBR and Resilient Modulus for subgrade design?
CBR is a static penetration test that measures the load-bearing capacity of a compacted soil sample. Resilient Modulus (Mr) is a dynamic test that simulates repeated traffic loading. Mr is used in mechanistic-empirical pavement design (MEPDG). Both are correlated, but Mr provides a more realistic value for pavement response under traffic.
How deep should a subgrade investigation go for a residential road in Calgary?
The investigation should reach at least 1.5 times the depth of the anticipated frost penetration, typically 2.0 to 2.5 meters. This ensures you identify any frost-susceptible layers or high water tables that could cause heave. For collector roads with heavier traffic, we extend boreholes to 3.0 meters.
When should I use lime stabilization versus cement stabilization for subgrade improvement?
Lime works best on high-plasticity clays (PI > 15). It reduces plasticity, improves workability, and provides a moderate strength gain. Cement is more effective on low-plasticity soils and sands. It delivers higher early strength and is preferred for subgrades under heavy traffic. The choice depends on the soil plasticity and the required CBR.
What is the typical cost range for a road geotechnics study in Calgary?
The cost depends on the project size and the number of test points. For a standard residential subdivision road, expect a range between CA$1,040 and CA$6,290. This includes test pits, lab testing, and a design report. Larger projects with multiple boreholes and extensive lab work can exceed this range.
How does the freeze-thaw cycle in Calgary affect pavement design?
Calgary experiences up to 150 freeze-thaw cycles annually. This repeated freezing and thawing softens the subgrade and causes frost heave. To mitigate this, we design a granular base layer thick enough to keep the frost line away from the subgrade. We also specify drainage to prevent water accumulation. If the subgrade is frost-susceptible clay, we recommend replacing it with non-frost-susceptible material.
