Calgary sits on a mix of glacial till, lacustrine clay, and gravel terraces laid down by retreating ice sheets. These soils respond differently under load, and the National Building Code of Canada requires differential settlement limits under serviceability checks. We follow CSA + CSA + CSA + CSA + ASTM D2435 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) for one-dimensional consolidation and ASTM D4546 (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4) for swell-collapse behavior — essential when the clay content is high. In the city's southwest districts, where till overlies compressible clay, a proper settlement analysis helps predict long-term deflection before foundation design begins. We also link this to a broader study of soil mechanics to capture the full stratigraphy. Understanding the post-glacial history of the Bow River valley makes settlement predictions more reliable than relying on generic tables.
Glacial till in Calgary is often over-consolidated, but ignoring the underlying lacustrine clay can lead to differential settlement exceeding NBCC tolerances.
Methodology and scope
Calgary sits at roughly 1,045 metres above sea level, and the freeze-thaw cycles affect near-surface moisture content. When we run settlement analysis here, we pay attention to the pre-consolidation pressure — many deposits are over-consolidated from glacial loading, but local excavation can trigger rebound. We measure this through oedometer tests on undisturbed samples. The analysis outputs include immediate (elastic) settlement, primary consolidation, and secondary compression rates. For projects on the city's east side, where lacustrine clays can reach 10 metres thick, we recommend vertical drains ahead of surcharge to accelerate consolidation. Our lab is accredited under ISO 17025, and we report results with a clear breakdown: magnitude (mm), time rate (log-time method), and factor of safety against bearing failure. We also cross-check with field density testing to confirm compaction targets on fill sites.

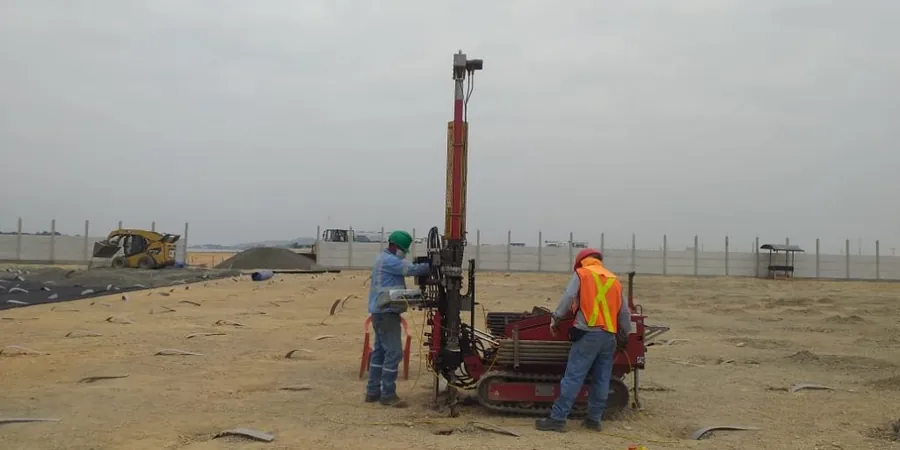

Technical reference image — Calgary
Local considerations
The biggest risk in Calgary is differential settlement between buildings founded on till versus those on soft clay lenses. The laboratory oedometer frame applies vertical loads in increments while a dial gauge records deformation — this simulates the exact stress path the soil will see under the proposed foundation. When the clay layer is thick and the load is high, consolidation can take years. We use the Terzaghi one-dimensional theory to estimate the time-settlement curve, but we also account for radial drainage if vertical drains are planned. Missing the pre-consolidation stress can lead to designs that underestimate total settlement by 40% or more. That's why we run at least three oedometer tests per soil layer to capture variability.
Step-loaded consolidation tests on undisturbed Shelby tube samples. Outputs include Cc, Cr, cv, and time-rate curves for each load increment.
02
Settlement Prediction Modeling
Finite-layer analysis using Terzaghi theory with correction for secondary compression. We provide total and differential settlement contours for the site.
03
Surcharge & Drain Design Review
Review of preload schedules and vertical drain spacing to achieve target post-construction settlement within project timelines.
What is the difference between immediate settlement and consolidation settlement?
Immediate settlement happens elastically as load is applied, usually within days. Consolidation settlement is time-dependent as pore water drains from clay layers, often taking months to years.
How long does a typical settlement analysis take for a Calgary site?
Lab testing runs 3 to 6 weeks depending on the number of oedometer tests. The analysis and reporting add another 1 to 2 weeks after test results are available.
What is the typical cost range for a settlement analysis in Calgary?
The typical cost range is CA$860 to CA$2,530 depending on the number of tests, site complexity, and reporting detail. Contact us for a firm quote based on your project scope.
Do you handle settlement analysis for existing buildings showing cracks?
Yes. We can back-analyze observed settlement by correlating crack patterns with lab consolidation data from boreholes near the foundation. This helps determine if movement is active or stable.
What ASTM standards apply to settlement analysis in Canada?
The primary standard is CSA + CSA + CSA + CSA + ASTM D2435 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) for one-dimensional consolidation. We also reference ASTM D4546 (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4) (CFEM Ch 4) for swell-collapse and CFEM for soil classification, all under NBCC 2020 serviceability limits.
