Calgary's subsoil is a layered puzzle: glacial till over soft clayey silt, with pockets of organic silt near the Bow and Elbow rivers. Many times we see DSM specified for embankment support or liquefaction mitigation, yet the design often overlooks the high sulfate content in local groundwater—this can degrade cementitious binders over time. A proper deep soil mixing design in Calgary must start with a site-specific chemical analysis of pore water and soil pH. Without that, the target unconfined compressive strength of 1–3 MPa may never be reached. Before proceeding with column layout, we always cross-check the soil stratigraphy with a CPT profile to map strength variability in the till layers. The interaction between DSM columns and the stiff till crust below is what controls the settlement performance of the treated ground.
DSM column strength in Calgary's glacial till depends on binder compatibility with sulfate-rich pore water—test before you design.
Methodology and scope
Calgary grew fast after the 1970s oil boom, pushing development onto floodplains and former wetlands. That legacy means many industrial and commercial sites sit on soft ground that cannot support shallow footings. Deep soil mixing design in Calgary addresses this by creating stiff columns of soil-cement that transfer loads to the competent till at 8–15 m depth. The key parameters are column diameter (typically 0.6–1.2 m), area replacement ratio (15–35 %), and binder type (ordinary Portland cement or slag-cement blends). We recommend a slag content of 50–70 % when sulfates exceed 1000 ppm. The design also requires verification of column-to-column overlap when forming walls or blocks. This is where the as-sessment of bearing capacity of the treated ground must be integrated into the global stability check. Each project includes a full-scale trial column with coring and UCS testing at 7, 28, and 56 days.
Technical reference image — Calgary
Local considerations

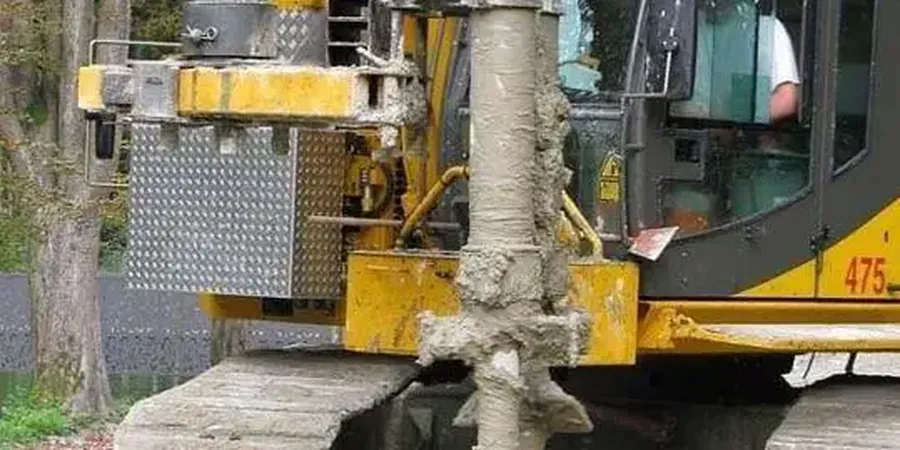

The DSM rig used in Calgary is typically a multi-shaft auger system mounted on a 60–80 ton crawler crane. It works well in the soft clay layers but can struggle with cobbles and boulders embedded in the glacial till. When the auger hits a boulder, torque spikes and the mixing becomes non-uniform, producing zones of low-strength soil-cement. That risk is real. A deep soil mixing design in Calgary must include a pre-construction geophysical survey or test pit program to identify the cobble content. Without it, you face columns with strength variability of ±50 % across the site. We mitigate this by specifying a minimum energy per meter and real-time monitoring of torque, penetration rate, and binder flow. The design also accounts for the risk of heave in adjacent structures when treating under existing buildings.
Optimized column spacing and diameter based on bearing capacity and settlement limits. We use finite-element analysis (PLAXIS 2D/3D) to model the composite ground response under service loads.
02
Binder Formulation and Dosage Optimization
Laboratory mix design program with site soil and groundwater. We test 5–8 binder blends (cement, slag, fly ash) to determine the most cost-effective recipe that meets UCS and durability targets.
03
Full-Scale Trial Column and Quality Control
Execution of 2–4 trial columns with continuous monitoring. We core the columns at 7, 28, and 56 days for UCS testing and visually inspect the mixing quality. All data feeds back into the final design.
Applicable standards
NBCC 2020 — National Building Code of Canada (clause 4.1.8 for seismic design of improved ground), ACI 318-19 — Building Code Requirements for Structural Concrete (applies to DSM columns as deep-mixed elements), ASTM D1633-17 — Standard Test Method for Compressive Strength of Molded Soil-Cement Cylinders, FHWA-HRT-19-051 — Deep Mixing for Embankment Support (U.S. guidance adapted for Canadian practice)
Frequently asked questions
How long does a deep soil mixing design process take for a typical Calgary site?
The full design cycle — laboratory mix design, numerical analysis, and trial column verification — typically takes 6 to 10 weeks. The mix design phase alone requires 4 weeks for curing and UCS testing at 7, 28, and 56 days. Trial column execution and coring add another 2 to 4 weeks depending on site access and weather.
What is the typical cost range for a deep soil mixing design project in Calgary?
The cost for a complete DSM design package — including laboratory mix design, numerical modeling, and trial column supervision — ranges between CA$2.130 and CA$9.310. The final price depends on the number of binder blends tested, the complexity of the soil stratigraphy, and whether a full-scale trial column is required. Contact us for a project-specific quote.
Can deep soil mixing be used to reduce liquefaction risk in Calgary's silty soils?
Yes, DSM is an effective liquefaction mitigation technique for loose, saturated silty sands and clayey silts found in Calgary's river valleys. The columns densify the surrounding soil during installation and increase the overall shear stiffness of the ground. The design must target an area replacement ratio of at least 20 % and verify that the treated ground achieves a factor of safety against liquefaction above 1.3 under the NBCC 2020 seismic hazard spectrum.
