Between the gravelly tills under the Deerfoot Trail corridor and the soft clay zones near the Bow River valley, Calgary's subsurface is anything but uniform. For a tunnel project, that variability demands a thorough geotechnical analysis for soft soil tunnels before any cutterhead touches the ground. We've seen the difference first-hand: the dense lodgment till under downtown behaves almost like rock, while the lacustrine clays around Inglewood can squeeze and creep under load. That's why our field crew always starts with a classification of soils to map the layering before we even discuss SPT intervals. The city sits at 1,048 meters elevation, and the shallow water table in spring can complicate excavation fast.
In Calgary's glaciolacustrine clays, undrained shear strength can drop from 80 kPa to 20 kPa within a single borehole.
Methodology and scope
Our mobile lab trailer parks right next to the shaft, so we process Shelby tube samples within minutes of extraction. For the soft clay sequences typical of the Bow River floodplain, we trim specimens for triaxial testing under undrained conditions. The whole setup runs on a 20-ton hydraulic press and a set of latex membranes that we change after every sample to avoid cross-contamination. We also deploy a portable piezocone rig for continuous profiling where the till layers are interbedded with silt lenses. Before any numerical modelling, we run the consolidation test on undisturbed samples to get the compression index and preconsolidation pressure. The equipment is calibrated weekly against ASTM standards, and we log every reading in our chain-of-custody system.

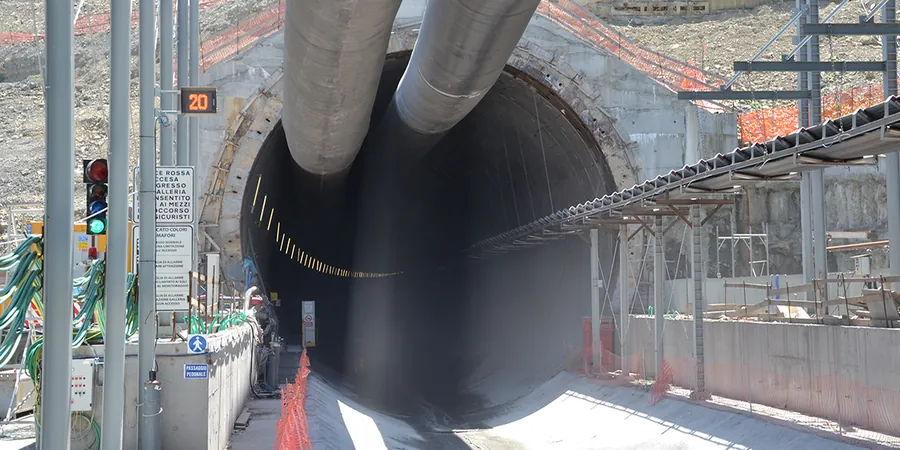

Technical reference image — Calgary
Local considerations
A few years back we worked on a sewer tunnel near the Elbow River crossing. The contractor had advanced only 12 meters with a TBM when the face started squeezing in. The clay till had a plasticity index over 30 percent, and the water table was just 3 meters below grade. We had to halt and run a full suite of triaxial and consolidation tests on tube samples taken from the invert. The geotechnical analysis for soft soil tunnels revealed that the soil was in a meta-stable state, prone to sudden volume loss. We recommended a 4-meter long forepoling umbrella plus face grouting, and the second drive went without incident. That job taught us never to trust visual logs alone in Calgary's variable clay deposits.
We mobilize track-mounted drill rigs to obtain undisturbed Shelby tube samples from tunnel alignment depths. Our crew performs SPT at 1.5-meter intervals and installs standpipe piezometers to monitor groundwater response during excavation.
02
Laboratory Testing for Tunnel Design
In our Calgary lab we run consolidated-undrained triaxial tests, oedometer consolidation tests, and Atterberg limits on samples from each soil unit. Results feed directly into finite-element models for lining design and settlement prediction.
How do you determine undrained shear strength for tunnel face stability?
We use UU triaxial tests on undisturbed tube samples trimmed to 50 mm diameter. For quick estimates during the field program we also correlate pocket penetrometer readings with lab results.
What is the typical cost range for a geotechnical analysis for soft soil tunnels in Calgary?
For a typical tunnel project the study ranges between CA$5.360 and CA$22.870 depending on borehole depth, number of tests, and reporting requirements. The final quote depends on the alignment length and soil variability.
Which Calgary soil conditions are most problematic for tunnel boring?
The glaciolacustrine clays under the Bow River valley and the soft clay tills near Fish Creek are the most challenging. They exhibit high plasticity, low drained strength, and can stick to the cutterhead causing blockages.
How many boreholes do you recommend for a 500-meter tunnel?
We recommend at least one borehole every 50 meters along the alignment, plus additional holes at portal locations and under major road crossings. That usually means 10 to 12 holes for a 500-meter drive.
Do you include groundwater monitoring in the tunnel analysis?
Yes, we install vibrating wire piezometers and standpipes in select boreholes. Continuous monitoring over at least one seasonal cycle helps us model pore pressure changes during and after construction.
