When you dig a test pit in Calgary, you often find dense gravels and glacial tills near the surface. But below those layers, the Bow River valley and its ancient channels hold loose, saturated sands. During a major earthquake, those sands can lose all shear strength. That is soil liquefaction. A proper soil liquefaction analysis in Calgary must look at the cyclic stress ratio (CSR) and cyclic resistance ratio (CRR) using SPT blow counts. We combine that with a MASW-Vs30 survey to define the shear-wave velocity profile and assign the correct NBCC site class. Without these measurements, you risk differential settlement and foundation failure.
Loose saturated sands below Calgary's glacial till can liquefy during a moderate earthquake. Without analysis, you risk differential settlement exceeding 30 cm.
Methodology and scope
A common mistake in Calgary construction is assuming the glacial till layer makes liquefaction impossible. But the alluvial sands under the till can liquefy. A reliable soil liquefaction analysis starts with standard penetration tests (CSA A23.2-9A / CSA A23.2-9A / CSA A23.2-9A / CSA A23.2-9A / CSA A23.2-9A / ASTM D1586) in boreholes drilled to at least 30 meters. We measure fines content, mean grain size, and groundwater depth. Then we apply the Youd-Idriss 2001 method to calculate the factor of safety. Key parameters include:
SPT N-value corrected for overburden (N1,60)
Fines content correction (N1,60-cs)
Cyclic stress ratio at each depth
Magnitude scaling factor for a Mw 6.5–7.0 event
We also cross-check results with a CPT-based liquefaction assessment for critical structures. The city's seismic hazard is moderate, but the consequences of ignoring liquefaction are severe.

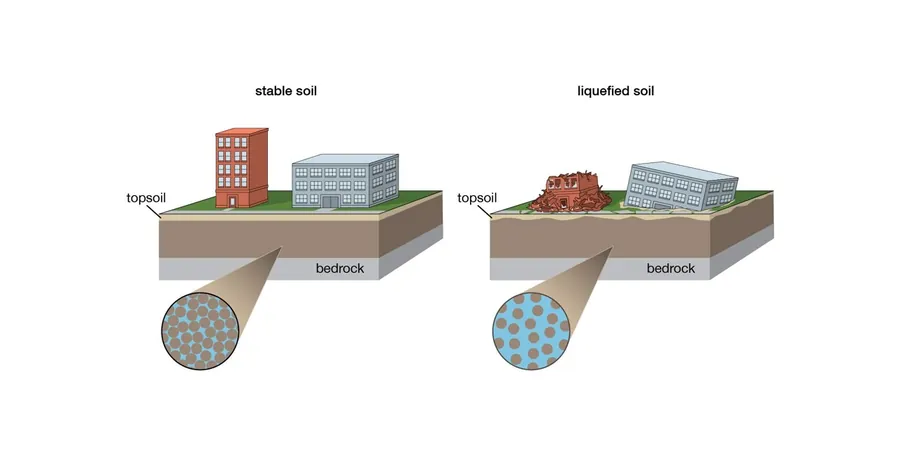

Technical reference image — Calgary
Local considerations
When the shaking starts, liquefied sand behaves like a viscous liquid. In Calgary, the biggest risk is lateral spreading along riverbanks and underground utilities. We have seen cases where buried pipelines floated to the surface. The team uses a portable SPT rig that drills through the till into the sand layer. We measure pore-pressure dissipation with a piezocone. If the factor of safety drops below 1.0, we recommend ground improvement like deep soil mixing or stone columns. Ignoring a low CRR value can cost millions in repairs after a seismic event. The data speaks for itself.
Boreholes with SPT at 1.5 m intervals, fines content analysis, and factor-of-safety calculation using NCEER methods. Includes NBCC site class assignment.
02
CPT-Based Liquefaction Screening
Continuous cone penetration test with pore pressure measurement. Faster than SPT for large areas. Provides Ic index and soil behavior type.
03
Shear-Wave Velocity (Vs30) Survey
MASW or downhole seismic survey to measure Vs30. Essential for sites with limited borehole access or when only surface measurements are possible.
What is the typical cost of a soil liquefaction analysis in Calgary?
For a standard residential or commercial project, the cost ranges between CA$3.280 and CA$6.170 depending on borehole depth, number of SPT tests, and laboratory work. Large industrial sites with CPT may fall at the upper end.
Does Calgary have a high risk of earthquake-induced liquefaction?
Calgary sits in NBCC seismic hazard zone with a moderate PGA of about 0.2g for a 2% in 50-year event. Liquefaction risk is real in the Bow River valley and areas with shallow groundwater. The glacial till is not a guarantee of safety.
What soil types in Calgary are most susceptible to liquefaction?
Loose, clean to silty sands with less than 35% fines and groundwater within 6 m of the surface. These are found in paleochannels and recent alluvial deposits along the Bow and Elbow rivers.
How is the factor of safety against liquefaction calculated?
We use the simplified procedure from Youd & Idriss (2001). The cyclic resistance ratio (CRR) is derived from corrected SPT blow counts. The cyclic stress ratio (CSR) is computed from peak ground acceleration, overburden stress, and a depth reduction factor. FS = CRR/CSR.
What ground improvement methods work best for liquefiable soils in Calgary?
Deep soil mixing, vibro-replacement (stone columns), and dynamic compaction are common. For sensitive sites near existing structures, jet grouting or compaction grouting is preferred. A proper analysis identifies the depth and thickness of liquefiable layers first.
