A 20-tonne CPT rig sits at a site in northeast Calgary, its hydraulic rams pushing a 15 cm² cone into the ground at a steady 2 cm/s. The cone tip measures sleeve friction and pore pressure every 2 cm, sending data directly to the on-board computer. This continuous profile is ideal for Calgary's complex glacial till deposits, where interbedded sand lenses and stiff clays challenge traditional sampling. The cone penetrometer reaches depths of up to 30 meters in favorable conditions, providing a stratigraphic log that no other method delivers with such precision. Before interpreting cone resistance values, the team cross-references with calicatas exploratorias to validate the soil classification in sensitive zones.
CPT provides a continuous stratigraphic log with real-time tip resistance and pore pressure, critical for identifying sand lenses in Calgary's glacial till.
Methodology and scope
ASTM D5778-20 governs the entire CPT procedure in Calgary, from cone calibration to advance rate. The piezo-cone measures three parameters simultaneously: tip resistance (q_c), sleeve friction (f_s), and pore pressure (u_2), with typical accuracy of ±1% for q_c and ±2% for f_s. In Calgary's glacial tills, q_c values frequently range from 10 MPa to 25 MPa in dense tills, with pore pressure responses that help identify sand and gravel layers. The friction ratio R_f (f_s/q_c × 100) typically falls between 0.5% and 3% for silty clays, aiding in soil behavior type classification using Robertson's 1990 chart. These readings are invaluable for capacidad de carga calculations on spread footings and pile foundations alike. The test is performed at 1 m intervals with pore pressure dissipation tests at key depths to estimate hydraulic conductivity in Calgary's shallow aquifers.

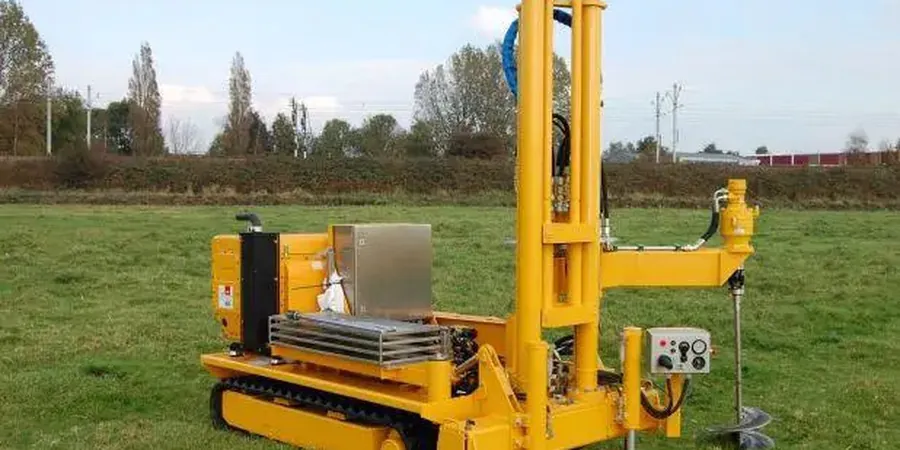

Technical reference image — Calgary
Local considerations
A common mistake in Calgary is assuming that SPT N-values alone can characterize the full soil profile for deep foundations. In one recent project near the Bow River, the SPT blow count of 28 suggested dense sand, but a CPT later revealed a 1.2 m soft clay seam at 8 m depth that would have caused excessive settlement. Relying solely on discrete SPT samples can miss thin layers in Calgary's variable glacial till. The cone penetrometer captures every centimeter, so the design team can identify and design for weak zones before pouring concrete. Skipping this step means accepting unknown settlement risk in a city where soil conditions change every few blocks.
Adds a seismic sensor behind the cone to measure vs30/" data-interlink="1">shear wave velocity (Vs) at 1 m intervals, used for site class determination per NBCC 2020 and liquefaction assessment in Calgary's alluvial deposits.
02
Piezocone Dissipation Testing
Pore pressure dissipation tests at selected depths to estimate in-situ hydraulic conductivity (k), critical for dewatering design in Calgary's shallow groundwater zones near the Elbow River.
03
CPT with Environmental Sampling
Cone penetration with soil and groundwater sampling ports for contamination assessments, combining geotechnical and environmental data in a single push for Calgary brownfield sites.
Applicable standards
ASTM D5778-20: Standard Test Method for Electronic Friction Cone and Piezocone Penetration Testing of Soils, NBCC 2020: Division B, Part 4 for foundation design soil parameters, CSA A23.3-19: Design of Concrete Structures – geotechnical resistance factors
Frequently asked questions
How deep can a CPT reach in Calgary's glacial till?
In typical Calgary glacial till with stiff clays and dense sands, the CPT can reach 20 to 30 meters before encountering refusal at q_c values exceeding 40 MPa. Thick gravel layers may stop the cone earlier, but the continuous record up to refusal still provides detailed stratigraphy.
What does the CPT measure that SPT does not?
The CPT provides a continuous profile of tip resistance, sleeve friction, and pore pressure every 2 cm, whereas SPT offers blow counts at discrete 1.5 m intervals. This allows CPT to detect thin sand lenses, clay seams, or variable density layers that SPT would miss entirely, especially in Calgary's interbedded till.
What is the typical cost range for a CPT in Calgary?
CPT testing in Calgary typically ranges between CA$230 and CA$290 per linear meter, depending on depth, site access, and number of dissipation tests. Volume discounts apply for multiple test points on the same site.
How is CPT data used for foundation design in Calgary?
Engineers convert cone resistance (q_c) to allowable bearing capacity using methods outlined in NBCC 2020 and Robertson & Cabal (2015). Sleeve friction and pore pressure help identify collapsible or expansive soils common in Calgary's glacial deposits, guiding decisions on spread footings versus deep piles.
Is CPT suitable for Calgary's winter conditions?
Yes, CPT rigs are equipped with heated hydraulic systems and can operate in temperatures down to -25°C. Frozen ground requires pre-drilling or thawing, but the cone itself functions normally once through the frost line (typically 1.5 to 2 m in Calgary).
