The difference between building a road embankment in Calgary's inner-city communities like Bridgeland versus newer suburbs like McKenzie Towne is largely about the subgrade. Bridgeland sits on terrace gravels over compact glacial till, providing excellent natural drainage and bearing capacity. McKenzie Towne, built on former lake-bottom clays and glaciolacustrine deposits, presents a softer foundation prone to differential settlement under embankment loads. Road embankment design in Calgary must account for this variability from block to block. Before specifying fill placement, we recommend a calicata exploratory program to log soil stratification directly and retrieve undisturbed samples for lab testing. This early data defines both the foundation strength and the compaction targets for the fill itself.
Calgary's 160 freeze-thaw cycles per year make ice lens formation beneath embankments a primary long-term distress mechanism that must be modeled in design.
Methodology and scope
Calgary's rapid post-war expansion pushed infrastructure into areas underlain by compressible clay till and organic-rich lacustrine deposits, especially southeast of the Bow River. The city's frost cycle, averaging 160 freeze-thaw days per year, compounds embankment distress through ice lens formation beneath pavement layers. A solid road embankment design in Calgary addresses both short-term construction stability and long-term serviceability under these climatic cycles. Our methodology integrates index testing, Proctor compaction curves, and CBR values to define fill specifications. For critical sections near utility crossings or bridge approaches, we run the consolidation test to quantify primary and secondary settlement rates. This allows the engineer to set preload surcharges or wick drain spacing before the contractor mobilizes.

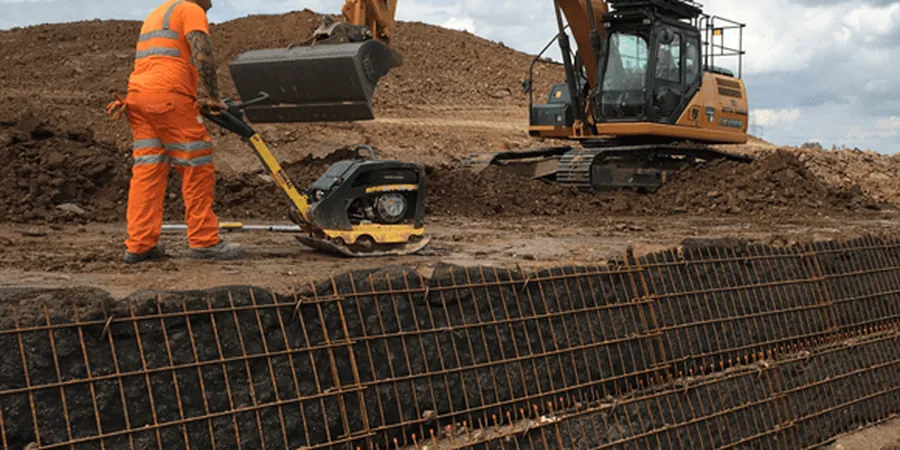

Technical reference image — Calgary
Local considerations
Calgary's chinook winds cause rapid temperature swings that accelerate freeze-thaw cycles in exposed embankment slopes. A fill placed in October may see +15 degrees Celsius one day and -20 the next, generating pore pressure redistribution and potential tension cracks. Road embankment design in Calgary must also consider the city's location in a moderate seismic zone (NBCC 2020 seismic hazard 0.08-0.16 PGA). Liquefaction of saturated sand lenses within the Bow River valley alluvium could trigger lateral spreading beneath embankment toes. We model these scenarios using effective stress analysis with drained shear strength parameters from consolidated triaxial tests. Ignoring the combined thermal and seismic loading can lead to slope failures within the first five winters.
Test pits, SPT borings, and undisturbed sampling to log till, clay, and sand units. Classification by USCS and AASHTO with Atterberg limits and grain size distribution.
02
Compaction Control & CBR Testing
Standard and modified Proctor curves for fill materials. Soaked CBR values at 95% MDD to determine pavement structural number requirements.
03
Settlement & Stability Analysis
Consolidation testing for primary and secondary compression. Limit equilibrium slope stability under static and pseudo-static seismic conditions using Bishop and Spencer methods.
What is the typical foundation soil for road embankments in Calgary?
Most embankments in Calgary are built on glacial till, which consists of a dense matrix of sand, silt, gravel, and clay. In low-lying areas near the Bow and Elbow rivers, glaciolacustrine clays and silt deposits dominate. These soft clays require careful settlement analysis before embankment construction.
How does the frost cycle affect road embankment design in Calgary?
Calgary experiences over 150 freeze-thaw cycles annually, which can cause ice lens formation within the embankment fill and subgrade. This leads to differential heave and subsequent cracking of the pavement surface. Design must include adequate drainage, non-frost-susceptible fill in the top 1.2 metres, and sometimes capillary break layers.
What is the typical cost range for a road embankment geotechnical study in Calgary?
A full geotechnical investigation for a road embankment in Calgary typically ranges from CA$1.930 to CA$6.580 depending on embankment height, number of boreholes, and laboratory testing requirements. This includes field exploration, soil classification, compaction testing, and a stability analysis report.
When should I use wick drains or preloading for an embankment on clay?
If the foundation clay is thicker than 3 metres and has a high plasticity index (PI > 30), primary consolidation may take years without drains. Wick drains at 1.5 to 2 metre spacing accelerate pore pressure dissipation. Preloading at 120% of design load for 3 to 6 months typically achieves 90% consolidation. We recommend consolidation testing first to confirm the coefficient of consolidation (cv).
