CBR Study for Road Design in Calgary

A new industrial access road east of Deerfoot Trail needed a reliable subgrade assessment. The contractor hit glacial till with variable moisture content. Without a proper CBR study for road design, the pavement thickness would be a guess. We ran soaked and unsoaked CBR tests on undisturbed samples. The results directly informed the structural number for the asphalt section. For projects on soft subgrades, we often combine CBR data with a subrasante vial evaluation to optimize layer thickness. Calgary's freeze-thaw cycles make this analysis non-negotiable for long-term performance.

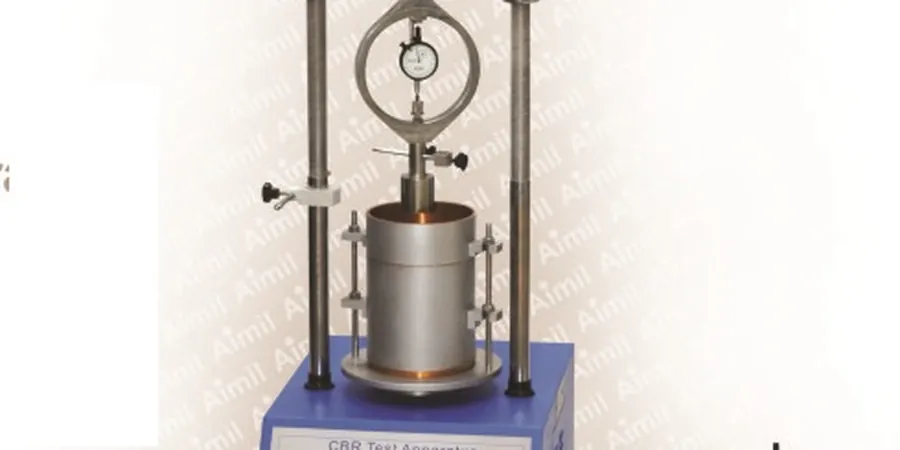

Illustrative image of Cbr vial in Calgary

A soaked CBR of 2 versus 5 can mean 150 mm extra base course — a direct cost impact per kilometer.

Methodology and scope

Calgary's urban expansion over the last two decades pushed roads onto former agricultural land and till plains. These soils vary from high-plasticity clay to sandy silt with cobbles. A standard CBR study for road design here must account for the wetting effects of spring thaw. In the lab, we compact samples at optimum moisture per ASTM D698 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) and soak them for 96 hours. The penetration resistance at 0.1 and 0.2 inches gives the CBR value. We also run a companion granulometria to classify the material. The city's frost protection guidelines require a minimum CBR of 3 for select subgrade. Our testing validates that threshold before construction begins.

Local considerations

A common mistake we see on Calgary road projects is using unsoaked CBR values for pavement design. The subgrade here gains strength when dry but loses it dramatically after spring melt. One contractor designed a subdivision road based on a dry CBR of 12. After the first thaw, the base failed under light truck traffic. A proper CBR study for road design with soaked testing would have caught the risk. We always run the soaked test unless the pavement is in a covered, drained environment. That small extra step avoids full-depth reclamation within two years.

Technical parameters

Parameter	Typical value
Test Standard	ASTM D1883-21
Compaction Method	ASTM D698 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (Standard Proctor)
Soaking Period	96 hours (4 days)
Penetration Depth	0.1 in and 0.2 in recorded
Sample Type	Undisturbed block or remolded
Moisture Conditioning	Oven dry to OMC ±1%

Associated technical services

Soaked CBR Testing

Four-day soaking with surcharge weights to simulate worst-case moisture. Results reported at 0.1 and 0.2 inches penetration.

Unsoaked CBR Testing

Rapid turnaround for dry-site conditions. Used for base and subbase materials where drainage is guaranteed.

Field CBR with DCP

Dynamic cone penetrometer correlation to CBR in situ. No sampling delay. Ideal for existing road evaluations.

CBR for Pavement Thickness Design

We input your CBR values into AASHTO 1993 or mechanistic-empirical models to recommend asphalt and base thickness.

Frequently asked questions

How long does a CBR study for road design take in Calgary?

Standard soaked CBR takes 5 business days: 4 days soaking plus 1 day of penetration testing. Unsoaked tests can be completed in 2 days. Rush service is available for an additional fee.

What CBR value is considered good for pavement subgrade?

For light traffic, a CBR of 3 to 5 is acceptable. For heavy truck routes, designers typically require a CBR of 8 or above. Values below 3 usually require subgrade improvement before placing base material.

What is the cost of a CBR test for a road project?

A single soaked CBR test with compaction typically ranges between CA$260 and CA$410 per sample, depending on the number of molds and whether field sampling is included. Volume discounts apply for multiple samples.

Can CBR testing be done on frozen ground?

No. CBR testing requires undisturbed or remolded samples at controlled moisture. Frozen ground alters the soil structure and gives artificially high strength values. We wait for thaw or sample from unfrozen stockpiles.
