Calgary sits on a thick sequence of glacial till and glaciolacustrine clay, with the water table often 6–10 m deep in the west but shallower near the Bow River. These soils exhibit high plasticity and moderate shrink-swell potential, demanding careful treatment before road construction. We apply lime and cement stabilization to control volume change and raise the California Bearing Ratio. The process begins with a detailed soil classification and Proctor compaction curve to determine optimum moisture. For sites with organic lenses or soft lacustrine clay, we also run CBR vial tests to confirm design values before specifying additive dosage. The goal is a uniform, low-permeability subgrade that supports asphalt or concrete pavements for decades.
Lime stabilization reduces plasticity index by 12–18 points in Calgary’s lacustrine clay, cutting subgrade heave by half.
Methodology and scope
Calgary’s post-war boom pushed subdivisions onto former glacial lakebeds east of Deerfoot Trail, where the clay can reach 12 m thick. Early roads settled unevenly because builders skipped stabilization. Today we design treatments based on the local soil profile and traffic load. The standard approach for low-volume collectors is 3–5% lime by dry weight, mixed to 300 mm depth. For arterial routes subjected to freeze-thaw cycles, we add 6–8% cement and compact to 95% of modified Proctor density. Each mix design is verified in the lab using Atterberg limits and unconfined compression after 7 days of curing. We also integrate subrasante vial evaluation to map variability across the alignment and adjust treatment zones accordingly. This prevents differential heave at property-line transitions.
Technical reference image — Calgary
Local considerations

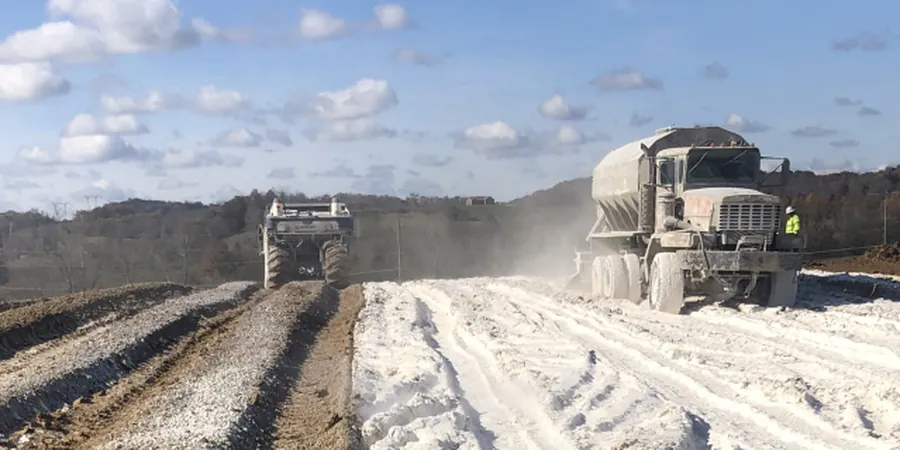

Our fleet includes a 4.5 m³ pugmill mixer and a pneumatic lime spreader with GPS rate control. We calibrate the spreader daily using test strips to keep dosage within ±0.3% of design. For deep mixing we use a 1.2 m diameter auger with cement slurry injection. The biggest operational risk in Calgary is the short construction window between May and October; wet springs delay mixing and curing. We mitigate this with moisture-density testing every 50 m and rapid-strength checks at 24 hours. If the clay is too wet, we pre-treat with lime before the main stabilization pass. This sequence is detailed in our terraplenes viales protocol for embankment construction over soft ground.
Laboratory determination of additive type and dosage based on soil plasticity, organic content, and target CBR. We run unconfined compression tests after 7 and 28 days of curing to verify strength gain.
02
In-Situ Stabilization with Pugmill
Mobilization of a self-propelled pugmill mixer that blends additive into the subgrade to 450 mm depth in a single pass. Density testing follows within 24 hours using a nuclear gauge calibrated for Calgary soils.
03
Deep Soil Mixing with Cement Columns
For soft lacustrine clay layers up to 6 m thick, we install cement-treated columns on a grid pattern to improve bearing capacity and reduce total settlement under embankments.
How long does soil stabilization for roads take in Calgary?
A typical 500 m section of two-lane road requires 3 to 5 working days: one day for mixing and compaction, two days for curing under a sealed membrane, and one day for post-treatment testing. Larger projects with deep mixing may take 2–3 weeks.
What is the difference between lime and cement stabilization?
Lime is preferred for high-plasticity clays (PI > 30) because it reduces plasticity index and shrink-swell potential through cation exchange. Cement works better for low-plasticity soils and provides faster strength gain, making it suitable for projects with tight schedules. We select the additive based on Atterberg limits and target CBR.
How much does soil stabilization for roads cost in Calgary?
Typical project costs range between CA$1,130 and CA$4,450 per lane-km, depending on treatment depth, additive dosage, and site accessibility. The final price is confirmed after lab mix design and a site visit to assess mobilization logistics.
