A mid-rise condominium rising near the Bow River in Calgary's Beltline district taught our team a lasting lesson about the city's subsurface. The geotechnical investigation revealed a sequence of dense glacial till overlying a soft clay layer at 14 meters depth, a profile typical of Calgary's post-glacial valleys. For that project, we designed a combination of bored piles socketed into the till to handle 1,200 kN per pile, a solution that required careful load testing and settlement monitoring. Before finalizing the pile layout, we integrated data from ensayo CPT to capture continuous tip resistance profiles, which helped refine pile lengths across the site. Calgary's variable soil conditions demand this level of site-specific analysis, especially when clay or silt lenses appear unexpectedly beneath the till.
A 1,200 kN bored pile socketed into dense glacial till near the Bow River demanded load testing and settlement monitoring before final design approval.
Methodology and scope
In Calgary, pile foundation design follows the National Building Code of Canada (NBCC 2020) alongside CSA A23.3 for concrete structures and ASTM D3966 for lateral load testing. What makes this city unique is the prevalence of hard glacial till that can transition abruptly into softer lacustrine deposits near the Elbow River. Our methodology starts with a thorough site investigation using boreholes and soil classification to map the stratigraphy. We then apply shaft friction and end bearing calculations based on Calgary-specific studies that correlate SPT N-values with pile capacity in till. The design accounts for frost depth reaching up to 2.4 meters and the potential for sulfate attack on concrete piles. For sites with high groundwater, we specify tremie concrete placement and consider corrosion protection per CSA S413.

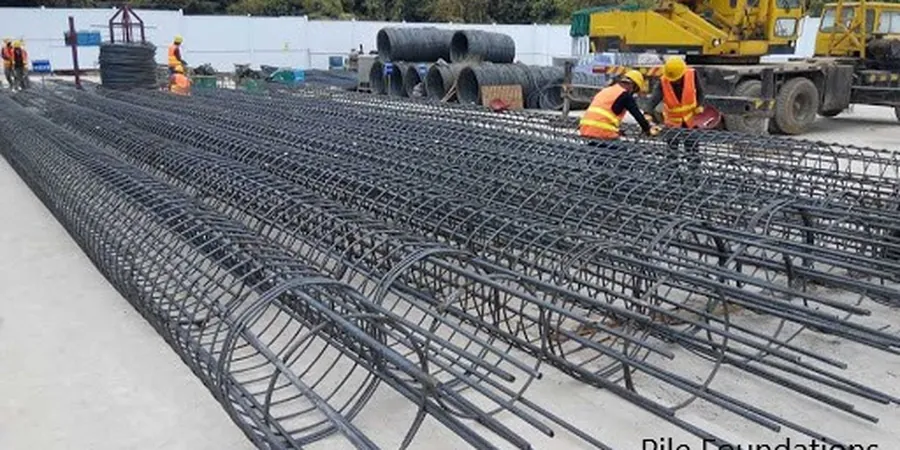

Technical reference image — Calgary
Local considerations
One of the most common mistakes we see in Calgary is assuming the glacial till is uniformly dense across the entire site. A developer in the southeast quadrant once designed all piles to the same depth based on a single borehole, only to encounter a buried channel of soft clay at 10 meters that halved the intended capacity. The fix required additional piles and a redesigned pile cap, adding weeks to the schedule. Another risk involves neglecting lateral loads from expansive soils or seismic events — Calgary sits in a moderate seismic zone per NBCC, and pile groups must be checked for group efficiency and lateral deflection under earthquake loading.
Bored, driven, CFA, or helical depending on soil and access
Design code
NBCC 2020, CSA A23.3, ASTM D3966-18
Typical pile diameter
300 mm to 900 mm for buildings; up to 1,200 mm for bridges
Maximum test load
Up to 6,000 kN per pile (static compression test)
Frost depth consideration
2.4 m below grade for pile top elevation
Corrosion protection
Min. 75 mm concrete cover or epoxy coating in aggressive soils
Associated technical services
01
Bored Pile Design
Cast-in-place drilled shafts (bored piles) designed for high axial and lateral loads in Calgary's glacial till and bedrock. We calculate shaft friction and end bearing using site-specific SPT and CPT data, and verify with static load tests per ASTM D1143.
02
Driven Pile Design
Precast concrete or steel H-piles driven to refusal in dense till or bedrock. We perform wave equation analysis (PDA/CAPWAP) to confirm driving stresses and capacity, and design pile groups for combined vertical and lateral loads.
03
CFA and Helical Pile Design
Continuous flight auger (CFA) piles for cohesive soils and helical piles for light to moderate loads in residential or low-rise commercial projects. We optimize helix configurations for torque-correlated capacity in Calgary's variable till.
Applicable standards
NBCC 2020 (National Building Code of Canada), CSA A23.3-19 (Design of Concrete Structures), ASTM D3966-18 (Standard Test Methods for Deep Foundations Under Lateral Load), ASTM D1143-20 (Standard Test Methods for Deep Foundations Under Static Axial Compressive Load)
Frequently asked questions
What is the typical pile foundation design process in Calgary?
The process begins with a geotechnical investigation including boreholes and SPT testing to define the soil profile. Our engineers then select the pile type (bored, driven, CFA, helical) based on soil conditions, loads, and access. We calculate ultimate and serviceability limit states per NBCC 2020, design the pile cap, and specify load testing (static or dynamic) to confirm capacity.
How does Calgary's glacial till affect pile design?
Calgary's dense glacial till offers high shaft friction and end bearing, but its variability across short distances demands multiple boreholes. Buried channels of softer clay or silt can reduce capacity locally. We use empirical correlations between SPT N-values (typically 30 to 80 blows per 300 mm) and pile skin friction, and always recommend a test pile program for projects exceeding three stories.
How much does pile foundation design cost in Calgary?
For a typical mid-rise building in Calgary, the geotechnical investigation and pile design engineering range between CA$1,960 and CA$9,540 depending on site complexity, number of boreholes, and required load testing. This includes the design report, pile layout drawings, and construction specifications.
What codes and standards govern pile design in Calgary?
The primary code is the National Building Code of Canada (NBCC 2020), supplemented by CSA A23.3 for concrete design and ASTM D3966 for lateral load testing. Local amendments from the City of Calgary's Land Use Bylaw and the Alberta Building Code may also apply. Our designs comply with all relevant provisions for frost depth, seismic loads, and corrosion protection.
