Many contractors in Calgary assume a standard gravity wall works for any basement excavation or road cut. That assumption fails here. The city sits on glaciolacustrine clay till and silt deposits that swell when wet and shrink during dry spells. A retaining wall designed without considering these volume changes leads to cracked panels or bulging faces within two years. Before specifying a structural section, the team performs a site-specific soil classification and integrates results from a clasificación de suelos to define plasticity and expansion potential. The design must also account for the seasonal frost line that reaches 2.4 meters, which imposes lateral ice pressures that a standard gravity section cannot resist.
A retaining wall in Calgary must resist frost jacking, clay swelling, and hydrostatic pressure simultaneously — a standard gravity section alone will not hold.
Methodology and scope
Calgary experiences over 100 freeze-thaw cycles each winter. That contrast between a Chinook-induced melt and a deep freeze creates repeated lateral stress on any retaining structure. The geotechnical approach combines drained backfill with a coarse granular zone to prevent ice lens formation behind the wall. For projects near the Bow River or Elbow River, groundwater seepage adds hydrostatic pressure that requires a filter layer and subdrain system. Each design also evaluates bearing capacity of the underlying clay till, which can vary from 150 kPa near Nose Hill to over 400 kPa in the downtown core. The team complements the wall analysis with a permeabilidad de campo test to confirm drainage rates before finalizing the weep hole spacing and drainpipe sizing.

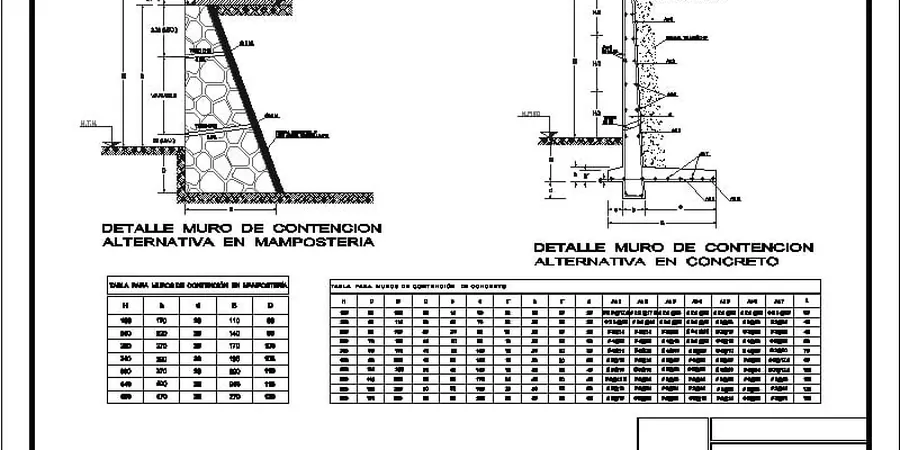

Technical reference image — Calgary
Local considerations
Calgary has experienced two major flood events in the past decade — 2013 and 2020 — that exposed dozens of retaining walls to rapid drawdown conditions. The saturated clay behind a wall loses effective stress when water recedes quickly, triggering sudden failure. Over 60% of the city's residential retaining walls built before 2005 lack a proper drainage blanket or geocomposite drain. The team uses the FHWA-NHI-05 methodology for drained and undrained conditions and incorporates a drenaje geotecnico layer behind every wall taller than 1.5 m. Ignoring the rapid drawdown scenario in Calgary's river-adjacent neighborhoods can lead to progressive tilting within three to five years.
Reinforced concrete cantilever and gravity walls up to 4.5 m height. Includes bearing capacity check, sliding and overturning verification, and drainage design per NBCC 2020 frost depth requirements.
02
Mechanically Stabilized Earth (MSE) Walls
MSE wall design for taller fills and bridge approach ramps. Uses geosynthetic or steel strip reinforcements. Includes internal stability analysis, external sliding, and global slope stability per FHWA-NHI-05.
Applicable standards
NBCC 2020 (clauses for lateral earth pressures and frost protection), CSA A23.3:2019 (concrete design for retaining structures), AASHTO LRFD Bridge Design Specifications (Section 11 – abutments and walls), FHWA-NHI-05-089 (mechanically stabilized earth walls and segmental retaining walls)
Frequently asked questions
What soil conditions in Calgary most affect retaining wall design?
The glaciolacustrine clay till found across much of Calgary has high plasticity and moderate swelling potential. During spring thaw, the clay softens and lateral pressures increase. A wall designed with active pressure coefficients from a standard textbook will underestimate these loads. We run Atterberg limits and direct shear tests on undisturbed samples to derive site-specific parameters.
Do I need a geotechnical report for a retaining wall on my residential lot in Calgary?
Yes. The City of Calgary's Development Permit process requires a geotechnical assessment for any wall exceeding 1.2 m in height or retaining a slope steeper than 3H:1V. The report must include soil classification, groundwater conditions, and a design recommendation signed by a professional engineer. Skipping this step can result in permit refusal or post-construction failure.
How much does retaining wall design and geotechnical testing cost in Calgary?
A complete geotechnical investigation plus design report for a typical residential retaining wall ranges between CA$1.370 and CA$6.050. The variance depends on wall height, access for drilling or test pitting, and the number of laboratory tests required. The price includes site visit, soil sampling, lab testing, and a sealed engineering design drawing.
