Calgary's post-war expansion and the 1988 Winter Olympics accelerated development across the Bow River valley and adjacent plains, exposing engineers to a complex glacial stratigraphy. The city's legacy of drumlins, meltwater channels, and buried gravel terraces means that a generic geogrid specification often fails to address the actual subgrade conditions encountered. From the deep clay till under the Beltline to the sand-gravel sequences near the airport, each project demands a reinforcement design that considers long-term tensile performance under cyclic freeze-thaw. Before selecting a grid type, a thorough ensayo de corte directo on the local soil helps define the interface shear angle, while clasificación de suelos by USCS groups the subgrade into categories that affect pullout resistance.
Calgary's glacial till requires geogrid specifications that prioritize junction strength over aperture size alone, especially when the subgrade CBR drops below 3.
Methodology and scope
In Calgary, the most common mistake is specifying a uniaxial geogrid for a subgrade that actually requires biaxial reinforcement due to lateral spreading in the clay till. The local till has a plasticity index that can exceed 25, which reduces the effective confinement and makes junction strength more critical than aperture size. A proper geogrid specification must include the following parameters:
Ultimate tensile strength (MD and CMD) per ASTM D6637
Junction efficiency and rib geometry for interlock with angular gravels
Creep reduction factor for sustained loads at 20 C
Installation damage resistance when placed over crushed limestone base
These values should be cross-referenced with the ensayo SPT blow counts from the site investigation to confirm that the subgrade modulus supports the intended reinforcement mechanism.

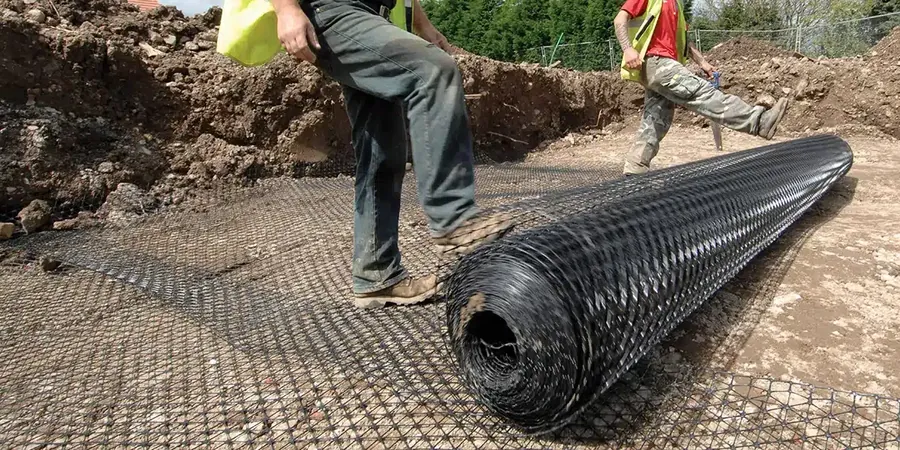

Technical reference image — Calgary
Local considerations
Calgary's frost depth reaches 1.8 m in some areas, and the high-plasticity till can experience volumetric changes during spring thaw. A geogrid specification that ignores the site-specific frost susceptibility may lead to differential heave and loss of reinforcement tension. In the Nose Creek and Fish Creek corridors, where soft lacustrine clays appear near the surface, the risk of bearing capacity failure increases if the grid is not designed with a proper pullout length. The NBCC 2020 now requires a 1-in-475-year return period for wind and seismic, but the real threat in Calgary remains the seasonal moisture variation that degrades soil-geogrid interaction over decades.
70% retained strength after 500 hours (ASTM D4355)
Installation damage factor
1.1–1.3 based on CBR > 5 subgrade
Associated technical services
01
Geogrid tensile and creep verification
Full-range tensile testing per ASTM D6637, including wide-width strip tests and multi-rib creep evaluation at 20 C and 40 C. Results are reported with statistical confidence intervals for the design life required by the project.
02
Site-specific interface shear testing
Direct shear tests on soil-geogrid interfaces using Calgary's native till, sand, or gravel. We determine the friction angle and adhesion parameters needed for pullout resistance calculations in retaining walls and slope reinforcement.
Applicable standards
ASTM D6637-18 (Tensile properties of geogrids), GRI-GG2 (Junction strength test method), NBCC 2020 Division B Part 4 (Foundations and retaining structures)
Frequently asked questions
What is the typical cost range for a full geogrid specification review and testing program in Calgary?
A complete geogrid specification review combined with verification testing (tensile, creep, and interface shear) typically falls between CA$520 and CA$1,580, depending on the number of grid types evaluated and the depth of the site investigation data. Project-specific volume discounts apply for multi-site developments.
When should I specify a biaxial geogrid instead of a uniaxial geogrid for a Calgary project?
Biaxial geogrids are recommended when the subgrade consists of high-plasticity glacial till (PI > 20) or when the base layer is less than 300 mm thick. The biaxial pattern provides lateral confinement that reduces rutting in the transverse direction, which uniaxial grids cannot achieve. For embankments over soft lacustrine clays, biaxial reinforcement is often the standard solution.
How does frost action in Calgary affect geogrid long-term performance?
Frost heave in Calgary's clay till can impose up to 50 mm of vertical displacement per cycle. This movement reduces the effective confinement around the grid ribs, especially if the grid is placed within the frost zone. Using a geogrid with a creep reduction factor of 1.65 or higher, and ensuring the grid is installed at least 600 mm below the finished grade, minimizes the risk of tension loss over the design life.
