Calgary sits on a complex mix of glacial till, alluvial gravels, and bedrock from the Paskapoo Formation that changes dramatically over a few blocks. The freeze-thaw cycle weakens soil structure each spring, and heavy summer rains push pore pressures beyond failure thresholds. We combine field reconnaissance with laboratory testing to determine exactly why a slope moves. Before we commit to a remediation strategy, we run a clasificación de suelos to identify plasticity and fines content that control long-term behavior. This data feeds directly into limit-equilibrium and finite-element models that simulate real failure surfaces under Calgary conditions.
A factor of safety below 1.1 under saturated conditions means the slope will fail within the next wet cycle. We do not guess.
Methodology and scope
Calgary sits at 1,048 m above sea level, and the Chinook winds cause temperature swings that crack clay-rich till and reduce shear strength over time. We use the following approach for every slope failure analysis in Calgary:
Detailed topographic survey and historical air-photo review to map old slide scars and tension cracks
Borehole drilling with Shelby tube sampling for undisturbed specimens, followed by direct shear and triaxial testing per ASTM D3080 and CSA + CSA + CSA + CSA + ASTM D2850 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2)
Piezometer installation to monitor seasonal groundwater fluctuations in the till layer
A tomografía sísmica cross-section helps us image the failure plane without disturbing the site. We then apply the Morgenstern-Price method to compute factors of safety for both static and pseudo-static conditions.

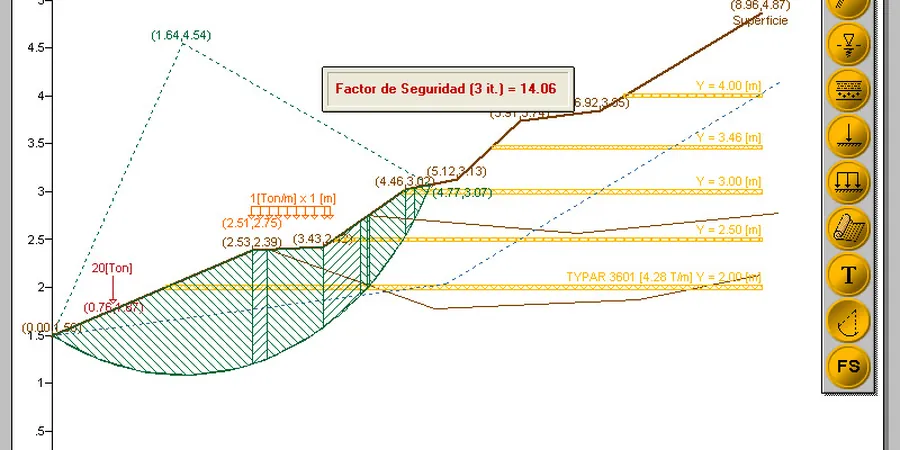

Technical reference image — Calgary
Local considerations
A 10-story apartment building near the Bow River escarpment started showing hairline cracks in the foundation wall after a wet August. The slope below the parking lot had bulged outward by 40 cm. We mobilized a drilling rig with SPT capability and installed inclinometers to measure movement rate. The failure surface was 9 m deep in a clay seam that had never been logged during the original geotechnical investigation. Ignoring that seam meant the factor of safety was 0.92 under saturated conditions. We had to design a soldier-pile wall with tieback anchors to stop the slide before winter.
We drill boreholes, install standpipe piezometers and inclinometers, and collect undisturbed samples. This gives us the real pore pressure and movement data needed to calibrate models.
02
Limit-Equilibrium & Finite-Element Modeling
Using Slide2 and PLAXIS 2D, we compute factors of safety for circular and non-circular failure surfaces. We test multiple scenarios: rapid drawdown, seismic loading, and surcharge from adjacent construction.
03
Remediation Design & Monitoring
We design soil nails, tieback walls, drainage blankets, or buttress fills based on the analysis results. After installation, we monitor movement for 12 months to confirm stability.
What is the typical cost of a slope failure analysis in Calgary?
A full slope failure analysis for a residential lot with two boreholes, lab testing, and a stability report ranges from CA$1.300 to CA$3.800. Larger commercial sites with multiple cross-sections and instrumentation can exceed CA$6.000.
How long does the analysis take from site visit to final report?
We typically complete field drilling in 2-3 days. Lab testing takes two weeks. Modeling and report writing add another week. Total turnaround is 4-5 weeks, but we can expedite to 2 weeks for emergency cases.
Can you analyze a slope that has already failed?
Yes. We conduct a back-analysis using the observed failure geometry and soil strength parameters to determine the triggering mechanism. This helps us design a remediation that prevents recurrence.
Do you account for Calgary's freeze-thaw cycles in the analysis?
We do. We model the reduction in shear strength caused by ice lens formation and spring thaw. We also factor in the effect of Chinook-induced rapid temperature changes on slope surface stability.
What is the difference between a static and a seismic slope stability analysis?
A static analysis uses gravitational forces only. A seismic analysis adds a horizontal pseudo-static force based on the NBCC 2020 seismic hazard values for Calgary (PGA ≈ 0.20g). This force can reduce the factor of safety by 0.2 to 0.4.
