Calgary sits at 1,045 meters elevation on the western edge of the Canadian Prairies, but its shallow geology tells a story of glacial till, lacustrine clay, and gravel terraces left by retreating ice sheets. For projects that require a reliable estimate of the site's natural period without drilling or heavy equipment, an HVSR microtremor survey in Calgary provides the fundamental resonance frequency of the soil column in under two hours. The Nakamura method isolates the horizontal-to-vertical spectral ratio from ambient vibrations, giving us the f0 value that directly influences seismic design under NBCC 2020. We pair this survey with a MASW Vs30 profile when the project needs a shear-wave velocity model, or with microzonification sismica for larger district-scale assessments. The result is a cost-effective way to classify site class without mobilizing a drill rig.

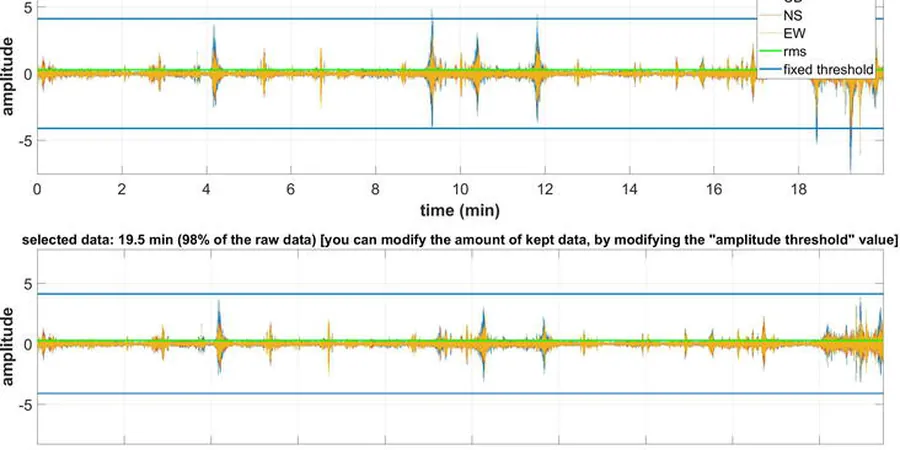

Illustrative image of Microtremores hvsr in Calgary

A 15-minute HVSR reading in Calgary can classify a site as C, D, or E under NBCC 2020 — no drilling, no traffic disruption.

Methodology and scope

Calgary's urban development has expanded rapidly onto former floodplains and glacial lake deposits, where soft clays and silts can amplify seismic waves. The HVSR microtremor survey in Calgary captures ambient noise over a 15–30 minute window, and the equipment — a three-component tromometer — is sensitive enough to detect vibrations from wind, traffic, and industrial activity. We process the data using the Nakamur a method with anti-trigger filters to discard transient spikes from passing trucks or construction. For projects in the inner city's deep till deposits, the resonance frequency typically falls between 2 and 6 Hz, while sites near the Bow River valley often show lower frequencies around 0.8–1.5 Hz, indicating thicker soft sediments. When the survey reveals a clear peak, we correlate it with local borehole logs and a dynamic compaction survey to verify the depth to bedrock. The technique is non-invasive, which means no traffic disruptions on active roads or parkland.

Local considerations

In Calgary we often see geotechnical reports that rely solely on SPT N-values for seismic classification, but that approach misses the fundamental period of the soil deposit. A site with 20 meters of soft clay can show moderate blow counts yet still resonate dangerously at 1 Hz, amplifying long-period waves from distant subduction earthquakes. The HVSR microtremor survey in Calgary catches this mismatch directly. If the peak is broad or absent, the soil column may be too rigid or too irregular, and we then recommend a [MASW profile](/masw-vs30/) to resolve the velocity structure. Ignoring the resonance frequency can lead to under-designed foundations in the city's western suburbs, where thick lacustrine clays are common.

Parameter	Typical value
Measurement time per station	15–30 minutes
Frequency range detected	0.2 – 20 Hz
Typical f0 in glacial till (inner Calgary)	2 – 6 Hz
Typical f0 in Bow River valley	0.8 – 1.5 Hz
Depth of investigation (estimated from f0)	10 – 80 m

Parameter

Typical value

Measurement time per station

15–30 minutes

Frequency range detected

0.2 – 20 Hz

Typical f0 in glacial till (inner Calgary)

2 – 6 Hz

Typical f0 in Bow River valley

0.8 – 1.5 Hz

Depth of investigation (estimated from f0)

10 – 80 m

Associated technical services

Single-station HVSR – reconnaissance

One 15-minute measurement at a single location to obtain the fundamental frequency (f0) and estimate site class per NBCC 2020. Ideal for small residential lots or preliminary site screening before a full geotechnical investigation.

Multi-station HVSR array – detailed profiling

Six to twelve stations arranged along a grid or transect to map lateral variations in resonance frequency. Includes 2D contour plots and correlation with existing borehole logs. Used for subdivision-scale developments or critical infrastructure projects.

Frequently asked questions

How long does an HVSR microtremor survey in Calgary take per station?

Each station requires 15 to 30 minutes of ambient vibration recording. Setup and breakdown add about 10 minutes per point. A typical 6-station array can be completed in half a day, including data quality checks in the field.

What is the typical cost of an HVSR survey for a residential lot in Calgary?

For a single-station reconnaissance survey, expect a range between CA$2,060 and CA$3,600 depending on travel distance and report complexity. Multi-station arrays are priced per point and can be quoted after reviewing the site layout.

Does the HVSR method work on frozen ground or during winter in Calgary?

Yes, the tromometer rests directly on the soil surface or on a thin snow layer. Frozen ground does not affect the ambient vibration spectrum as long as the sensor is in good contact. We regularly perform surveys in Calgary from November through March.
