Calgary's freeze-thaw cycles and clay-rich till create complex ground behavior. Installing instrumentation here demands precision. We design and install systems that track pore pressure, deformation, and temperature in real time. Calgary's geology—glacial till over bedrock—shifts with moisture and frost. Our geotechnical instrumentation captures those changes before they become problems. For deep excavations, we pair this with calicatas exploratorias to verify soil layering. The data guides every decision.
Glacial till in Calgary contains cobbles and boulders. Drilling for instrumentation requires careful planning. We install inclinometers to 30 m depth.
Methodology and scope
Glacial till in Calgary contains cobbles and boulders. Drilling for instrumentation requires careful planning. We install inclinometers to 30 m depth using casings that resist shear. Piezometers track groundwater response to snowmelt and rain. Vibrating wire sensors provide continuous readings. For settlements under embankments, we combine geotechnical instrumentation with ensayo SPT to correlate blow counts with modulus. All sensors meet CSA Z768 for installation. The lab holds ISO 17025 accreditation for transducer calibration. We deploy automated dataloggers with cellular telemetry. The system alerts engineers when thresholds trigger.

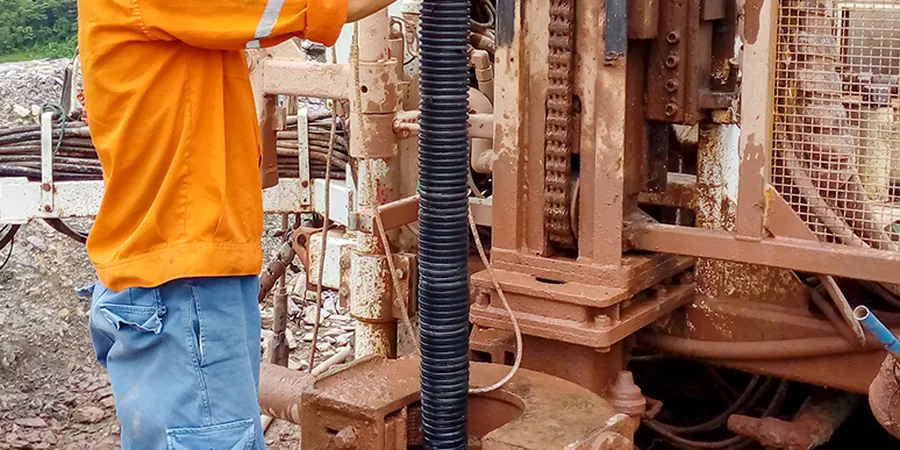

Technical reference image — Calgary
Local considerations
Downtown Calgary high-rises and the Beltline share the same glacial till but differ in groundwater. The Bow River valley has artesian pressures that can blow out a shallow excavation. Without geotechnical instrumentation, a 1% change in pore pressure triggers settlement in adjacent buildings. We saw a 12 mm differential on a 15-story tower during spring thaw. The inclinometer data let us adjust shoring before cracks appeared. That is why we install early and monitor often.
Pore pressure 0–1 MPa; inclination ±30°; settlement ±100 mm
Accuracy
±0.1% FS (piezometer); ±0.01 mm/m (inclinometer)
Installation Depth
Up to 40 m in till; 15 m in weathered bedrock
Data Logging Interval
1 minute to 24 hours, programmable
Telemetry
4G cellular, LoraWAN, or wired RS-485
Associated technical services
01
Inclinometer Installation and Monitoring
Biaxial tilt sensors installed in grooved casing grouted into 86 mm boreholes. We survey baseline readings and issue weekly deformation plots. Ideal for deep excavations and embankment fills.
02
Piezometer Networks
Vibrating wire piezometers with porous tips placed in sand packs. We seal each zone with bentonite. The system reports pore pressure every 6 hours via cellular uplink. Used for dewatering design and slope stability.
03
Settlement and Heave Monitoring
Liquid-level settlement cells and rod extensometers track vertical movement to ±0.1 mm. We install them on foundation slabs and behind retaining walls. Data goes to cloud dashboards accessible by all stakeholders.
Applicable standards
CSA Z768 – Standard Practice for Installation of Piezometers, ASTM D6230 – Inclinometer Installation and Data Reduction, NBCC 2020 – National Building Code of Canada (section 4.2.4 instrumentation requirements)
Frequently asked questions
How much does geotechnical instrumentation design and installation cost in Calgary?
The typical range for a medium-sized project (5 to 10 sensors, data logger, 3 months of monitoring) is CA$3.820 to CA$5.150. This includes sensor supply, drilling, installation, baseline readings, and monthly reports. Larger networks increase cost proportionally.
What sensors are best for monitoring slope stability in Calgary?
Inclinometers for lateral movement and vibrating wire piezometers for pore pressure. Calgary's till can creep during spring thaw. A combined system gives early warning. We also install tiltmeters on retaining walls for rapid response.
How long does it take to install a piezometer network?
A single piezometer takes 4 to 6 hours from drilling to backfill. A network of 5 piezometers with a datalogger takes 2 to 3 days. We mobilize a truck-mounted drill and a two-person crew. The schedule depends on site access and depth.
Can I access instrument data remotely?
Yes. All our systems log to a cloud platform accessible via web browser or mobile app. You get alerts when readings exceed predefined thresholds. Data exports are available in CSV or PDF for reporting to regulators and engineers.
