The difference between building in Calgary's inner-city communities like Inglewood versus new developments in the deep glacial till of the northwest hills is more than just zoning. In Inglewood, you are often dealing with post-glacial alluvial deposits and relatively stiff clays, while the northwest suburbs sit atop thick sequences of highly overconsolidated till with interbedded sand lenses. This variability makes the oedometer consolidation test a critical tool for predicting how much and how fast the ground will settle under load. For any structure that applies sustained stress, from a six-story condo to a road embankment, the oedometer provides the compression index and pre-consolidation pressure needed to design against differential movement. Calgary's freeze-thaw cycles and variable moisture further complicate the picture, so a well-run consolidation test in Calgary is not optional for safe foundation design.
Calgary's glacial till is not uniform; a single sand seam can double total settlement under a heavy foundation load.
Methodology and scope
A common mistake local builders make is assuming that all glacial till behaves the same. That assumption fails when a sand seam or a softened clay layer is encountered at depth, leading to settlement predictions that are off by several centimeters. The oedometer consolidation test directly measures how a soil sample compresses under incremental loads, giving engineers the recompression index and the coefficient of consolidation. This data feeds directly into asentamiento-diferencial calculations for mat foundations and into precarga-sobrecarga designs when preloading is used to accelerate settlement. The test also helps distinguish between immediate elastic settlement and time-dependent consolidation settlement, which is crucial for projects on the soft lacustrine clays found near the Bow River. Specimens are trimmed from undisturbed Shelby tube samples, loaded in a consolidation ring, and monitored for deformation over 24-hour increments per CSA + CSA + CSA + CSA + ASTM D2435 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2).

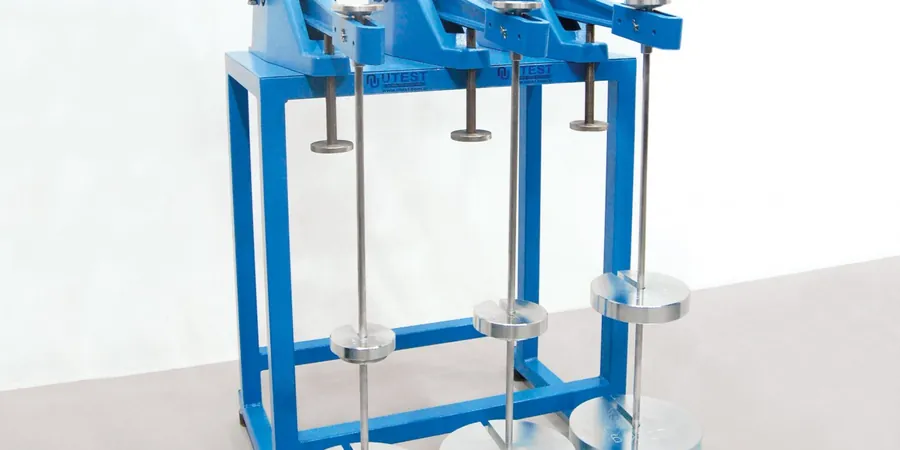

Technical reference image — Calgary
Local considerations
Calgary's rapid post-war expansion pushed developments onto terrain with variable glacial stratigraphy, including ice-contact deposits and proglacial lakebeds. These older deposits often contain soft clay layers that, under the weight of new fill or building loads, can undergo significant consolidation settlement. Skipping the oedometer consolidation test in such areas means designing blind. The consequence is not just cracked floors or tilted slabs, but potential structural damage that requires expensive underpinning or even demolition. In a city with a high water table in certain neighborhoods, ignoring time-rate settlement can lead to differential movement between the building and utility connections. A thorough consolidation test in Calgary is the only way to quantify these risks before the foundation is poured.
Standard 24-hour load increments from 12.5 to 3200 kPa to define the complete consolidation curve. Ideal for high-rise tower foundations and bridge abutments where long-term settlement governs design.
02
Constant Rate of Strain (CRS) Consolidation
Faster alternative for low-permeability Calgary tills. A single specimen is loaded at a constant strain rate, reducing test time from weeks to days while delivering comparable cv and σ'p values.
03
Swelling Pressure and Collapse Potential
Modified oedometer tests that first wet the specimen under a small seating load to measure swell pressure, then inundate at higher loads to assess collapse. Critical for sites with expansive claystone bedrock.
Applicable standards
CSA + CSA + CSA + CSA + ASTM D2435 (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) (also CFEM Ch 2) — Standard Test Methods for One-Dimensional Consolidation Properties of Soils, NBCC 2020 — National Building Code of Canada, Section 4.2 (Foundation Design), CSA A23.3-19 — Design of Concrete Structures (Annex on Foundation Settlement)
Frequently asked questions
How much does an oedometer consolidation test cost in Calgary?
A standard multi-stage incremental loading test typically ranges from CA$300 to CA$590 per specimen, depending on the number of load increments and whether a CRS test is substituted. Bulk discounts apply for multi-specimen projects.
How long does a consolidation test take?
A conventional 24-hour increment test with 8 to 10 load stages takes roughly 8 to 10 business days from specimen setup to final curve report. A constant rate of strain test can be completed in 2 to 3 days.
What is the difference between immediate settlement and consolidation settlement?
Immediate settlement occurs elastically as load is applied, while consolidation settlement is time-dependent and results from the expulsion of pore water from saturated fine-grained soils. The oedometer test measures the latter, which is typically the dominant component for Calgary's clay-rich till.
Do I need a consolidation test for a residential basement?
For a typical single-family home on shallow spread footings in undisturbed glacial till, a consolidation test is rarely required. However, if the house is on fill, near a riverbank, or has a deep basement with high bearing pressures, a test may be warranted to rule out excessive long-term settlement.
What sample quality is required for a valid oedometer test?
The test requires undisturbed samples extracted via thin-walled Shelby tubes (ASTM D1587). Disturbed or remoulded samples will significantly underestimate pre-consolidation pressure and overestimate compression index, rendering the test unreliable for design.
